ASTERIX Category 048 - Monoradar Target Reports
Transmission of monoradar target reports from radar stations. More...

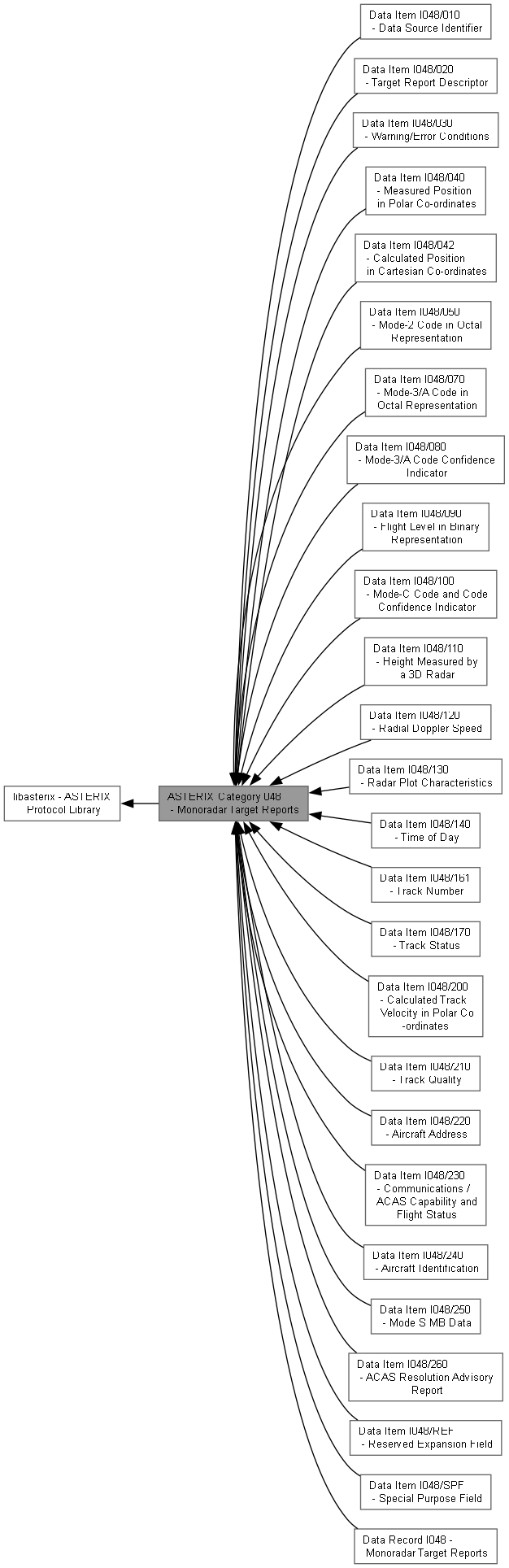

Collaboration diagram for ASTERIX Category 048 - Monoradar Target Reports:
Topics | |
| Data Item I048/010 - Data Source Identifier | |
| Identification of the radar station from which the data are received. | |
| Data Item I048/020 - Target Report Descriptor | |
| Type and characteristics of the radar data as transmitted by a radar station. | |
| Data Item I048/030 - Warning/Error Conditions | |
| Warning and error conditions detected by the radar or RDP. | |
| Data Item I048/040 - Measured Position in Polar Co-ordinates | |
| Measured position of a target in polar co-ordinates. | |
| Data Item I048/042 - Calculated Position in Cartesian Co-ordinates | |
| Calculated position of a target in Cartesian co-ordinates. | |
| Data Item I048/050 - Mode-2 Code in Octal Representation | |
| Mode-2 code as received from the transponder. | |
| Data Item I048/070 - Mode-3/A Code in Octal Representation | |
| Mode-3/A code (Squawk code) as received from the transponder. | |
| Data Item I048/080 - Mode-3/A Code Confidence Indicator | |
| Confidence level for each bit of the Mode-3/A code in I048/070. | |
| Data Item I048/090 - Flight Level in Binary Representation | |
| Flight Level (Mode C code) as received from the transponder. | |
| Data Item I048/100 - Mode-C Code and Code Confidence Indicator | |
| Mode-C code (Flight Level) and confidence indicator for each bit. | |
| Data Item I048/110 - Height Measured by a 3D Radar | |
| Height of the target as measured by a 3D radar. | |
| Data Item I048/120 - Radial Doppler Speed | |
| Radial doppler speed. | |
| Data Item I048/130 - Radar Plot Characteristics | |
| Radar plot characteristics. | |
| Data Item I048/140 - Time of Day | |
| Time of day. | |
| Data Item I048/161 - Track Number | |
| Unique track number assigned by the radar data processor. | |
| Data Item I048/170 - Track Status | |
| Status of the track including confidence and manoeuvre information. | |
| Data Item I048/200 - Calculated Track Velocity in Polar Co-ordinates | |
| Calculated velocity of the track in polar co-ordinates. | |
| Data Item I048/210 - Track Quality | |
| Estimated accuracy of the track position and velocity components. | |
| Data Item I048/220 - Aircraft Address | |
| 24-bit ICAO aircraft address assigned to the aircraft | |
| Data Item I048/230 - Communications / ACAS Capability and Flight Status | |
| Communications capability and flight status of the aircraft. | |
| Data Item I048/240 - Aircraft Identification | |
| Aircraft identification (callsign) from Mode S BDS 2,0. | |
| Data Item I048/250 - Mode S MB Data | |
| Mode S Comm-B message data extracted from Mode S replies. | |
| Data Item I048/260 - ACAS Resolution Advisory Report | |
| ACAS Resolution Advisory (RA) report from Mode S BDS 3,0. | |
| Data Item I048/REF - Reserved Expansion Field | |
| Reserved expansion field (FRN 28 RE). | |
| Data Item I048/SPF - Special Purpose Field | |
| Special purpose field (FRN 27 SP). | |
| Data Record I048 - Monoradar Target Reports | |
| Data record for monoradar target reports. | |
Functions | |
| const char * | ast_dataitem_048_get_name (const ast_dataitem_type_t type) |
| Get the name of a CAT048 data item. | |
Detailed Description
Transmission of monoradar target reports from radar stations.
- Overview:
- This category defines the transmission of monoradar target reports from a PSR (Primary Surveillance Radar), SSR (Secondary Surveillance Radar), MSSR (Monopulse SSR), or Mode S station to a radar data processing system. CAT048 replaces CAT001 in newer implementations for transmission of monoradar target reports.
- Target Report Types:
- Single PSR detection: Primary radar only
- Single SSR detection: Secondary radar only (Non-Mode S)
- SSR + PSR detection: Combined detection
- Single Mode-S All-Call: Mode S All-Call reply
- Single Mode-S Roll-Call: Mode S Roll-Call reply
- Mode-S All-Call + PSR: Combined Mode S All-Call and PSR
- Mode-S Roll-Call + PSR: Combined Mode S Roll-Call and PSR
- Data Items:
- I048/010 Data Source Identifier
- I048/020 Target Report Descriptor
- I048/030 Warning/Error Conditions
- I048/040 Measured Position in Polar Co-ordinates
- I048/042 Calculated Position in Cartesian Co-ordinates
- I048/050 Mode-2 Code in Octal Representation
- I048/055 Mode-1 Code in Octal Representation
- I048/060 Mode-2 Code Confidence Indicator
- I048/065 Mode-1 Code Confidence Indicator
- I048/070 Mode-3/A Code in Octal Representation
- I048/080 Mode-3/A Code Confidence Indicator
- I048/090 Flight Level in Binary Representation
- I048/100 Mode-C Code and Code Confidence Indicator
- I048/110 Height Measured by a 3D Radar
- I048/120 Radial Doppler Speed
- I048/130 Radar Plot Characteristics
- I048/140 Time of Day
- I048/161 Track Number
- I048/170 Track Status
- I048/200 Calculated Track Velocity in Polar Co-ordinates
- I048/210 Track Quality
- I048/220 Aircraft Address
- I048/230 Communications/ACAS Capability and Flight Status
- I048/240 Aircraft Identification
- I048/250 Mode S MB Data
- I048/260 ACAS Resolution Advisory Report
- I048/REF Reserved Expansion Field
- I048/SPF Special Purpose Field
Function Documentation
◆ ast_dataitem_048_get_name()
| const char * ast_dataitem_048_get_name | ( | const ast_dataitem_type_t | type | ) |
Get the name of a CAT048 data item.
- Parameters
-
type Data item type identifier
- Returns
- Pointer to the name string
