ASTERIX Category 001 - Monoradar Target Reports
Monoradar target report processing. More...

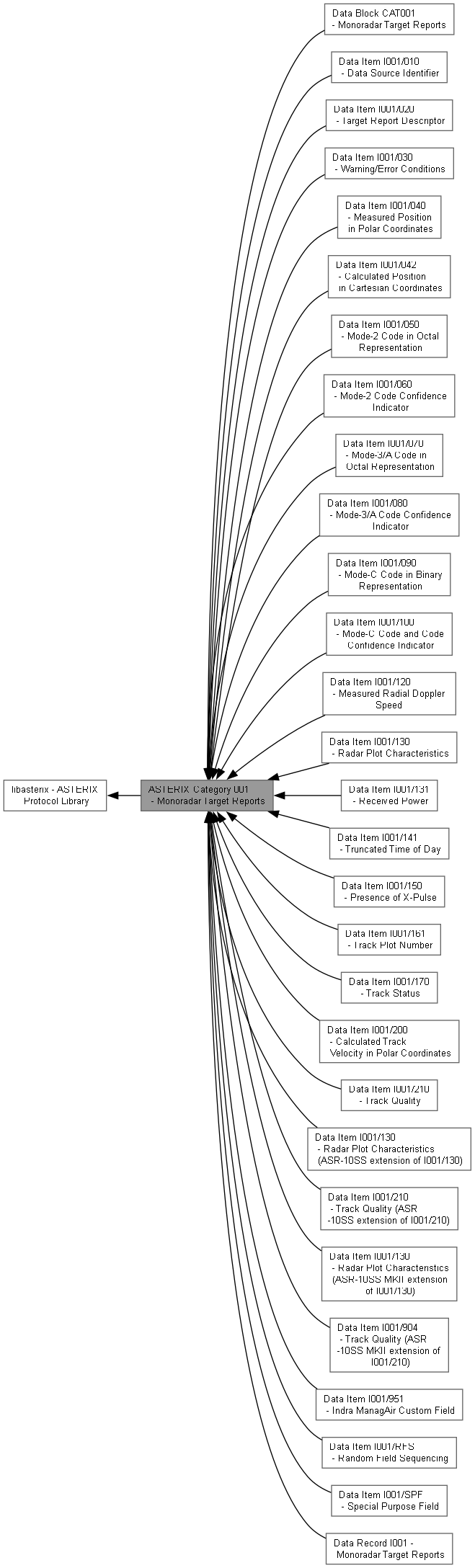

Collaboration diagram for ASTERIX Category 001 - Monoradar Target Reports:
Topics | |
| Data Item I001/010 - Data Source Identifier | |
| Identification of the radar station from which the data are received. | |
| Data Item I001/020 - Target Report Descriptor | |
| Type and characteristics of the radar data as transmitted by a radar station. | |
| Data Item I001/030 - Warning/Error Conditions | |
| Warning/error conditions detected by a radar station for the target report involved. | |
| Data Item I001/040 - Measured Position in Polar Coordinates | |
| Measured position of an aircraft in local polar coordinates. | |
| Data Item I001/042 - Calculated Position in Cartesian Coordinates | |
| Calculated position of an aircraft in local cartesian coordinates. | |
| Data Item I001/050 - Mode-2 Code in Octal Representation | |
| Mode-2 code for the plot/track in octal representation. | |
| Data Item I001/060 - Mode-2 Code Confidence Indicator | |
| Confidence level for each reply bit of the Mode-2 code. | |
| Data Item I001/070 - Mode-3/A Code in Octal Representation | |
| Mode-3/A code (squawk code) in octal representation. | |
| Data Item I001/080 - Mode-3/A Code Confidence Indicator | |
| Confidence level for each reply bit of the Mode-3/A code. | |
| Data Item I001/090 - Mode-C Code in Binary Representation | |
| Mode-C code (altitude) in binary representation. | |
| Data Item I001/100 - Mode-C Code and Code Confidence Indicator | |
| Mode-C code in Gray notation together with confidence indicators. | |
| Data Item I001/120 - Measured Radial Doppler Speed | |
| Measured radial Doppler speed of a target. | |
| Data Item I001/130 - Radar Plot Characteristics | |
| Application-dependent information on plot characteristics. | |
| Data Item I001/131 - Received Power | |
| Received power of the primary or combined plot. | |
| Data Item I001/141 - Truncated Time of Day | |
| Time of validity of the target report, truncated. | |
| Data Item I001/150 - Presence of X-Pulse | |
| Presence of the X-Pulse for the various modes applied in the interrogation interlace pattern. | |
| Data Item I001/161 - Track Plot Number | |
| Unique reference to a track/plot record. | |
| Data Item I001/170 - Track Status | |
| Status of track derived from primary and/or secondary radar. | |
| Data Item I001/200 - Calculated Track Velocity in Polar Coordinates | |
| Calculated track ground speed and heading in polar coordinates. | |
| Data Item I001/210 - Track Quality | |
| Relative track quality. | |
| Data Item I001/SPF - Special Purpose Field | |
| Special purpose field (FRN 20 SP Indicator). | |
| Data Item I001/RFS - Random Field Sequencing | |
| Random field sequencing field (FRN 21 RFS Indicator, RS-bit). | |
| Data Item I001/130 - Radar Plot Characteristics (ASR-10SS extension of I001/130) | |
| Raytheon ASR-10SS vendor-specific content of I001/130 Radar Plot Characteristics. | |
| Data Item I001/210 - Track Quality (ASR-10SS extension of I001/210) | |
| Raytheon ASR-10SS vendor-specific content of I001/210 Track Quality. | |
| Data Item I001/130 - Radar Plot Characteristics (ASR-10SS MKII extension of I001/130) | |
| Raytheon ASR-10SS MKII vendor-specific content of I001/130 Radar Plot Characteristics. | |
| Data Item I001/904 - Track Quality (ASR-10SS MKII extension of I001/210) | |
| Raytheon ASR-10SS MKII vendor-specific content of I001/210 Track Quality. | |
| Data Item I001/951 - Indra ManagAir Custom Field | |
| Indra ManagAir custom field with fixed 2 octets size. | |
| Data Record I001 - Monoradar Target Reports | |
| Complete data record for Category 001 messages. | |
| Data Block CAT001 - Monoradar Target Reports | |
| Data block handling for Category 001. | |
Functions | |
| const char * | ast_dataitem_001_get_name (const ast_dataitem_type_t type) |
| Get the name of a CAT001 data item. | |
Detailed Description
Monoradar target report processing.
- Overview:
- Category 001 is used for the transmission of monoradar target reports from a stand-alone radar station (conventional SSR, monopulse SSR, conventional primary radar or primary radar using MTD processing) to one or more RDP (Radar Data Processing) systems. It supports:
- Primary radar (PSR) reports
- Secondary radar (SSR) reports
- Combined PSR/SSR reports
- Plot and track data
- Data Items:
- I001/010 Data Source Identifier
- I001/020 Target Report Descriptor
- I001/030 Warning/Error Conditions
- I001/040 Measured Position in Polar Coordinates
- I001/042 Calculated Position in Cartesian Coordinates
- I001/050 Mode-2 Code in Octal Representation
- I001/060 Mode-2 Code Confidence Indicator
- I001/070 Mode-3/A Code in Octal Representation
- I001/080 Mode-3/A Code Confidence Indicator
- I001/090 Mode-C Code in Binary Representation
- I001/100 Mode-C Code and Code Confidence Indicator
- I001/120 Measured Radial Doppler Speed
- I001/130 Radar Plot Characteristics
- I001/131 Received Power
- I001/141 Truncated Time of Day
- I001/150 Presence of X-Pulse
- I001/161 Track Plot Number
- I001/170 Track Status
- I001/200 Calculated Track Velocity in Polar Coordinates
- I001/210 Track Quality
- I001/901 Radar Plot Characteristics, Raytheon ASR-10SS extension of I001/130
- I001/902 Track Quality, Raytheon ASR-10SS extension of I001/210
- I001/903 Radar Plot Characteristics, Raytheon ASR-10SS MKII extension of I001/130
- I001/904 Track Quality, Raytheon ASR-10SS MKII extension of I001/210
- I001/SPF Special Purpose Field
- I001/RFS Random Field Sequencing
- User Application Profiles (UAP):
- CAT001 uses different UAPs for plots and tracks:
- Plot UAP: For single detection reports
- Track UAP: For established track reports
The UAP is selected based on the TYP field in I001/020.
Function Documentation
◆ ast_dataitem_001_get_name()
| const char * ast_dataitem_001_get_name | ( | const ast_dataitem_type_t | type | ) |
Get the name of a CAT001 data item.
- Parameters
-
type Data item type identifier
- Returns
- Pointer to the name string
