ASTERIX CAT008 - Monoradar Derived Weather Information. More...

#include "dataitem.h"
#include "datarecord.h"
#include "cat_generic.h"

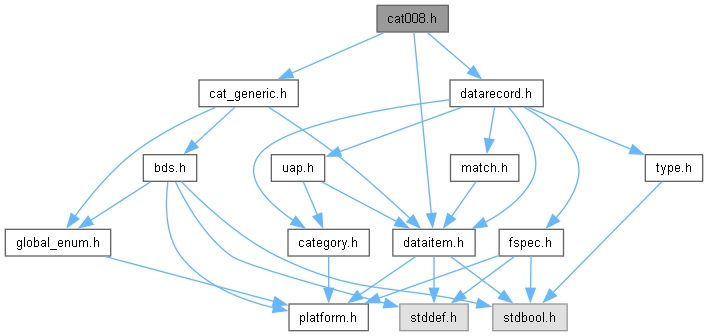

Include dependency graph for cat008.h:

This graph shows which files directly or indirectly include this file:

Data Structures
struct	ast_dataitem_008_020_t
	Data Item I008/020 - Vector Qualifier. More...
struct	ast_weather_polar_vector_t
	Weather vector in local polar coordinates (I008/034 element). More...
struct	ast_dataitem_008_034_t
	Data Item I008/034 - Sequence of Polar Vectors in SPF Notation. More...
struct	ast_weather_cartesian_vector_t
	Weather vector in start point/length representation (I008/036 element). More...
struct	ast_dataitem_008_036_t
	Data Item I008/036 - Sequence of Cartesian Vectors in SPF Notation. More...
struct	ast_weather_segment_vector_t
	Weather vector in start point/end point representation (I008/038 element). More...
struct	ast_dataitem_008_038_t
	Data Item I008/038 - Sequence of Weather Vectors in SPF Notation. More...
struct	ast_dataitem_008_040_t
	Data Item I008/040 - Contour Identifier. More...
struct	ast_weather_contour_point_t
	Contour point in cartesian coordinates (I008/050 element). More...
struct	ast_dataitem_008_050_t
	Data Item I008/050 - Sequence of Contour Points in SPF Notation. More...
struct	ast_dataitem_008_100_t
	Data Item I008/100 - Processing Status. More...
struct	ast_dataitem_008_110_t
	Data Item I008/110 - Station Configuration Status. More...
struct	ast_dataitem_008_120_t
	Data Item I008/120 - Total Number of Items Constituting One Weather Picture. More...
struct	ast_datarecord_008_t
	Data Record I008 - Monoradar Derived Weather Information. More...

Macros
#define	ast_dataitem_008_000_get_size ast_dataitem_message_type_get_size
	Get size function for I008/000.
#define	ast_dataitem_008_000_decode ast_dataitem_message_type_decode
	Decode function for I008/000.
#define	ast_dataitem_008_000_encode ast_dataitem_message_type_encode
	Encode function for I008/000.
#define	ast_dataitem_008_000_get_detail_html ast_dataitem_get_detail_html_dummy
	Get detail function for I008/000.
#define	ast_dataitem_008_010_get_size ast_dataitem_data_source_identifier_get_size
	Get size function for I008/010.
#define	ast_dataitem_008_010_decode ast_dataitem_data_source_identifier_decode
	Decode function for I008/010.
#define	ast_dataitem_008_010_encode ast_dataitem_data_source_identifier_encode
	Encode function for I008/010.
#define	ast_dataitem_008_010_get_summary ast_dataitem_data_source_identifier_get_summary
	Get summary function for I008/010.
#define	ast_dataitem_008_010_get_detail_html ast_dataitem_data_source_identifier_get_detail_html
	Get detail function for I008/010.
#define	ast_dataitem_008_020_get_size ast_dataitem_get_size_var_2_byte
	Get size function for I008/020.
#define	AST_WEATHER_MAX_VECTORS 255
	Maximum number of vectors in a repetitive data item (REP is one octet).
#define	ast_dataitem_008_034_get_size ast_dataitem_get_size_rep_4_byte
	Get size function for I008/034.
#define	ast_dataitem_008_036_get_size ast_dataitem_get_size_rep_3_byte
	Get size function for I008/036.
#define	ast_dataitem_008_038_get_size ast_dataitem_get_size_rep_4_byte
	Get size function for I008/038.
#define	ast_dataitem_008_040_get_size ast_dataitem_get_size_fixed_2_byte
	Get size function for I008/040.
#define	AST_WEATHER_MAX_CONTOUR_POINTS 255
	Maximum number of contour points in a repetitive data item (REP is one octet).
#define	ast_dataitem_008_050_get_size ast_dataitem_get_size_rep_2_byte
	Get size function for I008/050.
#define	ast_dataitem_008_090_get_size ast_dataitem_time_of_day_get_size
	Get size function for I008/090.
#define	ast_dataitem_008_090_decode ast_dataitem_time_of_day_decode
	Decode function for I008/090.
#define	ast_dataitem_008_090_encode ast_dataitem_time_of_day_encode
	Encode function for I008/090.
#define	ast_dataitem_008_090_get_summary ast_dataitem_time_of_day_get_summary
	Get summary function for I008/090.
#define	ast_dataitem_008_090_get_detail_html ast_dataitem_time_of_day_get_detail_html
	Get detail function for I008/090.
#define	AST_WEATHER_MAX_PSTATUS_EXTENTS 8
	Maximum number of one-octet extents of I008/100.
#define	ast_dataitem_008_110_get_size ast_dataitem_get_size_var_2_byte
	Get size function for I008/110.
#define	ast_dataitem_008_110_get_summary ast_dataitem_binary_data_get_summary
	Get summary function for I008/110.
#define	ast_dataitem_008_120_get_size ast_dataitem_get_size_fixed_2_byte
	Get size function for I008/120.
#define	ast_dataitem_008_120_get_detail_html ast_dataitem_get_detail_html_dummy
	Get detail function for I008/120.
#define	ast_dataitem_008_SPF_get_size ast_dataitem_special_purpose_field_get_size
	Get size function for I008/SPF.
#define	ast_dataitem_008_SPF_get_summary ast_dataitem_special_purpose_field_get_summary
	Get summary function for I008/SPF.
#define	ast_dataitem_008_SPF_get_detail_html ast_dataitem_special_purpose_field_get_detail_html
	Get detail function for I008/SPF.
#define	ast_dataitem_008_RFS_get_size ast_dataitem_random_field_sequencing_get_size
	Get size function for I008/RFS.
#define	ast_dataitem_008_RFS_get_summary ast_dataitem_random_field_sequencing_get_summary
	Get summary function for I008/RFS.
#define	ast_dataitem_008_RFS_get_detail_html ast_dataitem_random_field_sequencing_get_detail_html
	Get detail function for I008/RFS.

Typedefs
typedef ast_dataitem_message_type_t	ast_dataitem_008_000_t
	Data Item I008/000 - Message Type.
typedef ast_dataitem_data_source_identifier_t	ast_dataitem_008_010_t
	Data Item I008/010 - Data Source Identifier.
typedef ast_dataitem_time_of_day_t	ast_dataitem_008_090_t
	Data Item I008/090 - Time of Day.

Enumerations
enum	ast_weather_message_type_t { AST_WEATHER_MESSAGE_POLAR = 1 , AST_WEATHER_MESSAGE_CARTESIAN_PL = 2 , AST_WEATHER_MESSAGE_CONTOUR = 3 , AST_WEATHER_MESSAGE_CARTESIAN_PP = 4 , AST_WEATHER_MESSAGE_SOP = 254 , AST_WEATHER_MESSAGE_EOP = 255 }
	Weather Message Type. More...
enum	ast_weather_contour_record_position_t { AST_WEATHER_CONTOUR_INTERMEDIATE = 0 , AST_WEATHER_CONTOUR_LAST = 1 , AST_WEATHER_CONTOUR_FIRST = 2 , AST_WEATHER_CONTOUR_FIRST_AND_ONLY = 3 }
	Position of the record within a contour (FST/LST). More...

Functions
const char *	ast_dataitem_008_get_name (const ast_dataitem_type_t type)
	Get name function.
void	ast_dataitem_008_000_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
	Get summary function for I008/000.
ast_dataitem_008_020_t	ast_dataitem_008_020_decode (const ast_dataitem_t di)
	Decode function for I008/020.
void	ast_dataitem_008_020_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
	Get summary function for I008/020.
void	ast_dataitem_008_020_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
	Get detail function for I008/020.
ast_dataitem_008_034_t	ast_dataitem_008_034_decode (const ast_dataitem_t di)
	Decode function for I008/034.
void	ast_dataitem_008_034_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
	Get summary function for I008/034.
void	ast_dataitem_008_034_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
	Get detail function for I008/034.
ast_dataitem_008_036_t	ast_dataitem_008_036_decode (const ast_dataitem_t di)
	Decode function for I008/036.
void	ast_dataitem_008_036_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
	Get summary function for I008/036.
void	ast_dataitem_008_036_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
	Get detail function for I008/036.
ast_dataitem_008_038_t	ast_dataitem_008_038_decode (const ast_dataitem_t di)
	Decode function for I008/038.
void	ast_dataitem_008_038_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
	Get summary function for I008/038.
void	ast_dataitem_008_038_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
	Get detail function for I008/038.
ast_dataitem_008_040_t	ast_dataitem_008_040_decode (const ast_dataitem_t di)
	Decode function for I008/040.
void	ast_dataitem_008_040_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
	Get summary function for I008/040.
void	ast_dataitem_008_040_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
	Get detail function for I008/040.
ast_dataitem_008_050_t	ast_dataitem_008_050_decode (const ast_dataitem_t di)
	Decode function for I008/050.
void	ast_dataitem_008_050_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
	Get summary function for I008/050.
void	ast_dataitem_008_050_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
	Get detail function for I008/050.
size_t	ast_dataitem_008_100_get_size (const unsigned char *buffer, const size_t bufsize)
	Get size function for I008/100.
ast_dataitem_008_100_t	ast_dataitem_008_100_decode (const ast_dataitem_t di)
	Decode function for I008/100.
void	ast_dataitem_008_100_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
	Get summary function for I008/100.
void	ast_dataitem_008_100_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
	Get detail function for I008/100.
ast_dataitem_008_110_t	ast_dataitem_008_110_decode (const ast_dataitem_t di)
	Decode function for I008/110.
void	ast_dataitem_008_110_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
	Get detail function for I008/110.
ast_dataitem_008_120_t	ast_dataitem_008_120_decode (const ast_dataitem_t di)
	Decode function for I008/120.
void	ast_dataitem_008_120_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
	Get summary function for I008/120.
ast_datarecord_008_t	ast_datarecord_008_disassemble (const ast_datarecord_t dr)
	Disassemble a CAT008 data record into its components.

Detailed Description

ASTERIX CAT008 - Monoradar Derived Weather Information.

Description:: Declarations of the CAT008 data structures and encode/decode functions.

Note: This implementation is based on ASTERIX CAT008 version 1.0; Reference: EUROCONTROL-SPEC-0149-3

Function Documentation

◆ ast_dataitem_008_get_name()

const char * ast_dataitem_008_get_name ( const ast_dataitem_type_t type )

Get name function.
