cat010.h File Reference

ASTERIX CAT010 - Transmission of Monosensor Surface Movement Data. More...

#include "dataitem.h"
#include "datarecord.h"
#include "cat_generic.h"

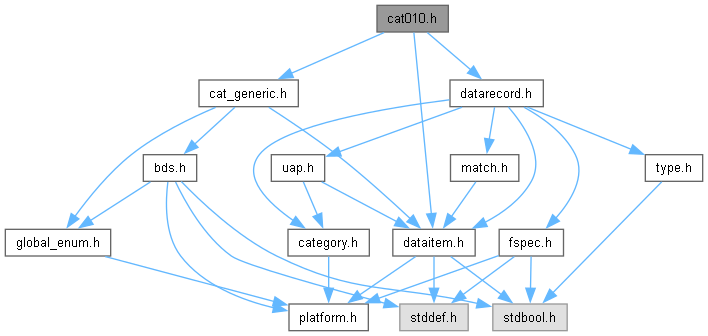

Include dependency graph for cat010.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  ast_dataitem_010_020_t
 Data Item I010/020 - Target Report Descriptor. More...
struct  ast_dataitem_010_040_t
 Data Item I010/040 - Measured Position in Polar Co-ordinates. More...
struct  ast_dataitem_010_042_t
 Data Item I010/042 - Calculated Position in Cartesian Co-ordinates. More...
struct  ast_dataitem_010_131_t
 Data Item I010/131 - Amplitude of Primary Plot. More...
struct  ast_dataitem_010_170_t
 Data Item I010/170 - Track Status. More...
struct  ast_dataitem_010_270_t
 Data Item I010/270 - Target Size & Orientation. More...
struct  ast_dataitem_010_500_t
 Data Item I010/500 - Standard Deviation of Position. More...
struct  ast_dataitem_010_550_t
 Data Item I010/550 - System Status. More...
struct  ast_datarecord_010_t
 Data Record I010 - Transmission of Monosensor Surface Movement Data. More...

Macros

#define ast_dataitem_010_000_get_size   ast_dataitem_message_type_get_size
 Get size function.
#define ast_dataitem_010_000_decode   ast_dataitem_message_type_decode
 Decode function.
#define ast_dataitem_010_000_encode   ast_dataitem_message_type_encode
 Encode function.
#define ast_dataitem_010_000_get_detail_html   ast_dataitem_get_detail_html_dummy
 Get detail function.
#define ast_dataitem_010_010_get_size   ast_dataitem_data_source_identifier_get_size
 Get size function.
#define ast_dataitem_010_010_decode   ast_dataitem_data_source_identifier_decode
 Decode function.
#define ast_dataitem_010_010_encode   ast_dataitem_data_source_identifier_encode
 Encode function.
#define ast_dataitem_010_010_get_summary   ast_dataitem_data_source_identifier_get_summary
 Get summary function.
#define ast_dataitem_010_010_get_detail_html   ast_dataitem_data_source_identifier_get_detail_html
 Get detail function.
#define ast_dataitem_010_020_get_size   ast_dataitem_get_size_var_3_byte
 Get size function.
#define ast_dataitem_010_040_get_size   ast_dataitem_get_size_fixed_4_byte
 Get size function.
#define ast_dataitem_010_041_get_size   ast_dataitem_position_wgs84_get_size
 Get size function.
#define ast_dataitem_010_041_decode   ast_dataitem_position_wgs84_decode
 Decode function.
#define ast_dataitem_010_041_encode   ast_dataitem_position_wgs84_encode
 Encode function.
#define ast_dataitem_010_041_get_summary   ast_dataitem_position_wgs84_get_summary
 Get summary function.
#define ast_dataitem_010_041_get_detail_html   ast_dataitem_position_wgs84_get_detail_html
 Get detail function.
#define ast_dataitem_010_042_get_size   ast_dataitem_get_size_fixed_4_byte
 Get size function.
#define ast_dataitem_010_060_get_size   ast_dataitem_mode_3a_code_get_size
 Get size function.
#define ast_dataitem_010_060_decode   ast_dataitem_mode_3a_code_decode
 Decode function.
#define ast_dataitem_010_060_encode   ast_dataitem_mode_3a_code_encode
 Encode function.
#define ast_dataitem_010_060_get_summary   ast_dataitem_mode_3a_code_get_summary
 Get summary function.
#define ast_dataitem_010_060_get_detail_html   ast_dataitem_mode_3a_code_get_detail_html
 Get detail function.
#define ast_dataitem_010_090_get_size   ast_dataitem_mode_c_code_get_size
 Get size function.
#define ast_dataitem_010_090_decode   ast_dataitem_mode_c_code_decode
 Decode function.
#define ast_dataitem_010_090_encode   ast_dataitem_mode_c_code_encode
 Encode function.
#define ast_dataitem_010_090_get_summary   ast_dataitem_mode_c_code_get_summary
 Get summary function.
#define ast_dataitem_010_090_get_detail_html   ast_dataitem_mode_c_code_get_detail_html
 Get detail function.
#define ast_dataitem_010_091_get_size   ast_dataitem_height_get_size
 Get size function.
#define ast_dataitem_010_091_decode   ast_dataitem_height_decode
 Decode function.
#define ast_dataitem_010_091_get_summary   ast_dataitem_height_get_summary
 Get summary function.
#define ast_dataitem_010_091_get_detail_html   ast_dataitem_height_get_detail_html
 Get detail function.
#define ast_dataitem_010_131_get_size   ast_dataitem_get_size_fixed_1_byte
 Get size function.
#define ast_dataitem_010_140_get_size   ast_dataitem_time_of_day_get_size
 Get size function.
#define ast_dataitem_010_140_decode   ast_dataitem_time_of_day_decode
 Decode function.
#define ast_dataitem_010_140_encode   ast_dataitem_time_of_day_encode
 Encode function.
#define ast_dataitem_010_140_get_summary   ast_dataitem_time_of_day_get_summary
 Get summary function.
#define ast_dataitem_010_140_get_detail_html   ast_dataitem_time_of_day_get_detail_html
 Get detail function.
#define ast_dataitem_010_161_get_size   ast_dataitem_track_number_get_size
 Get size function.
#define ast_dataitem_010_161_decode   ast_dataitem_track_number_decode
 Decode function.
#define ast_dataitem_010_161_encode   ast_dataitem_track_number_encode
 Encode function.
#define ast_dataitem_010_161_get_summary   ast_dataitem_track_number_get_summary
 Get summary function.
#define ast_dataitem_010_161_get_detail_html   ast_dataitem_track_number_get_detail_html
 Get detail function.
#define ast_dataitem_010_170_get_size   ast_dataitem_get_size_var_3_byte
 Get size function.
#define ast_dataitem_010_200_get_size   ast_dataitem_velocity_polar_get_size
 Get size function.
#define ast_dataitem_010_200_decode   ast_dataitem_velocity_polar_decode
 Decode function.
#define ast_dataitem_010_200_encode   ast_dataitem_velocity_polar_encode
 Encode function.
#define ast_dataitem_010_200_get_summary   ast_dataitem_velocity_polar_get_summary
 Get summary function.
#define ast_dataitem_010_200_get_detail_html   ast_dataitem_velocity_polar_get_detail_html
 Get detail function.
#define ast_dataitem_010_202_get_size   ast_dataitem_velocity_cartesian_get_size
 Get size function.
#define ast_dataitem_010_202_decode   ast_dataitem_velocity_cartesian_decode
 Decode function.
#define ast_dataitem_010_202_get_summary   ast_dataitem_velocity_cartesian_get_summary
 Get summary function.
#define ast_dataitem_010_202_get_detail_html   ast_dataitem_velocity_cartesian_get_detail_html
 Get detail function.
#define ast_dataitem_010_220_get_size   ast_dataitem_target_address_get_size
 Get size function.
#define ast_dataitem_010_220_decode   ast_dataitem_target_address_decode
 Decode function.
#define ast_dataitem_010_220_encode   ast_dataitem_target_address_encode
 Encode function.
#define ast_dataitem_010_220_get_summary   ast_dataitem_target_address_get_summary
 Get summary function.
#define ast_dataitem_010_220_get_detail_html   ast_dataitem_target_address_get_detail_html
 Get detail function.
#define ast_dataitem_010_245_get_size   ast_dataitem_target_id_get_size
 Get size function.
#define ast_dataitem_010_245_decode   ast_dataitem_target_id_decode
 Decode function.
#define ast_dataitem_010_245_get_summary   ast_dataitem_target_id_get_summary
 Get summary function.
#define ast_dataitem_010_245_get_detail_html   ast_dataitem_target_id_get_detail_html
 Get detail function.
#define ast_dataitem_010_270_get_size   ast_dataitem_get_size_var_3_byte
 Get size function.
#define ast_dataitem_010_500_get_size   ast_dataitem_get_size_fixed_4_byte;
 Get size function.
#define ast_dataitem_010_550_get_size   ast_dataitem_get_size_fixed_1_byte;
 Get size function.
#define ast_dataitem_010_SPF_get_size   ast_dataitem_special_purpose_field_get_size
 Get size function.
#define ast_dataitem_010_SPF_get_summary   ast_dataitem_special_purpose_field_get_summary
 Decode function.
#define ast_dataitem_010_SPF_get_detail_html   ast_dataitem_get_detail_html_dummy
 Get detail function.
#define ast_dataitem_010_REF_get_size   ast_dataitem_reserved_expansion_field_get_size
 Get size function.
#define ast_dataitem_010_REF_get_summary   ast_dataitem_reserved_expansion_field_get_summary
 Get Summary function.
#define ast_dataitem_010_REF_get_detail_html   ast_dataitem_reserved_expansion_field_get_detail_html
 Get detail function.
#define ast_datarecord_010_get_callsign   0
 Get callsign function.
#define ast_datarecord_010_get_icaoaddr   0
 Get ICAO 24-bit address function.
#define ast_datarecord_010_get_selaltitude   0
 Get selected altitude function.
#define ast_datarecord_010_get_vrate   0
 Get vertical rate function.

Typedefs

typedef ast_dataitem_message_type_t ast_dataitem_010_000_t
 Data Item I010/000 - Message Type.
typedef ast_dataitem_data_source_identifier_t ast_dataitem_010_010_t
 Item I010/010 - Data Source Identifier.
typedef ast_dataitem_position_wgs84_t ast_dataitem_010_041_t
 Item I010/041 - Position in WGS-84 Co-ordinates.
typedef ast_dataitem_mode_3a_code_t ast_dataitem_010_060_t
 Data Item I010/060 - Mode-3/A Code in Octal Representation.
typedef ast_dataitem_mode_c_code_t ast_dataitem_010_090_t
 Data Item I010/090 - Flight Level in Binary Representation.
typedef ast_dataitem_height_t ast_dataitem_010_091_t
 Data Item I010/091 - Measured Height in Local Cartesian Coordinates.
typedef ast_dataitem_time_of_day_t ast_dataitem_010_140_t
 Data Item I010/140 - Time of Day.
typedef ast_dataitem_track_number_t ast_dataitem_010_161_t
 Data Item I010/161 - Track Number.
typedef ast_dataitem_velocity_polar_t ast_dataitem_010_200_t
 Data Item I010/200 - Calculated Track Velocity in Polar Co-ordinates.
typedef ast_dataitem_velocity_cartesian_t ast_dataitem_010_202_t
 Data Item I010/202 - Calculated Track Velocity in Cartesian Coordinates.
typedef ast_dataitem_target_address_t ast_dataitem_010_220_t
 Data Item I010/220 - Target Address.
typedef ast_dataitem_target_id_t ast_dataitem_010_245_t
 Data Item I010/245 - Target Identification.

Enumerations

enum  ast_surface_message_type_t { AST_SURFACE_MESSAGE_TARGET_REPORT = 1 , AST_SURFACE_MESSAGE_START_UPDATE_CYCLE = 2 , AST_SURFACE_MESSAGE_PERIODIC_STATUS = 3 , AST_SURFACE_MESSAGE_EVENT_STATUS = 4 }
 Surface message type. More...
enum  ast_surface_target_type_t {
  AST_SFC_TARGET_TYPE_SSR_MLAT = 0 , AST_SFC_TARGET_TYPE_MODES_MLAT = 1 , AST_SFC_TARGET_TYPE_ADSB = 2 , AST_SFC_TARGET_TYPE_PSR = 3 ,
  AST_SFC_TARGET_TYPE_MAGLOOP = 4 , AST_SFC_TARGET_TYPE_HF_MLAT = 5 , AST_SFC_TARGET_TYPE_UNDEFINED = 6 , AST_SFC_TARGET_TYPE_OTHER = 7
}
 Surface Target Surveillance Type. More...
enum  ast_loop_status_t { AST_LOOP_UNDETERMINED = 0 , AST_LOOP_START = 1 , AST_LOOP_FINISH = 2 }
 Loop Status. More...
enum  ast_surface_target_t { AST_SFC_TARGET_UNDETERMINED = 0 , AST_SFC_TARGET_AIRCRAFT = 1 , AST_SFC_TARGET_GROUND_VEHICLE = 2 , AST_SFC_TARGET_HELICOPTER = 3 }
 Surface Target Type. More...
enum  ast_sfc_track_coast_type_t { AST_SFC_TRACK_COAST_TYPE_NO_EXTRAPOLATION = 0 , AST_SFC_TRACK_COAST_TYPE_SENSOR_REFRESH = 1 , AST_SFC_TRACK_COAST_TYPE_MASKED_AREA = 2 , AST_SFC_TRACK_COAST_TYPE_ABSENCE_DETECTION = 3 }
 Surface Track Cost Type. More...
enum  ast_sfc_track_movement_type_t { AST_SFC_TRACK_MOVE_TYPE_UNKNOWN = 0 , AST_SFC_TRACK_MOVE_TYPE_TAKIGOFF = 1 , AST_SFC_TRACK_MOVE_TYPE_LANDING = 2 , AST_SFC_TRACK_MOVE_TYPE_OTHER = 3 }
 Surface Track Movement Type. More...
enum  ast_sfc_track_doubt_type_t {
  AST_SFC_TRACK_DOUBT_TYPE_NODOUBT = 0 , AST_SFC_TRACK_DOUBT_TYPE_CORRELATION = 1 , AST_SFC_TRACK_DOUBT_TYPE_CORRELATION_CLUTTER = 2 , AST_SFC_TRACK_DOUBT_TYPE_ACCURACY = 3 ,
  AST_SFC_TRACK_DOUBT_TYPE_ACCURACY_CLUTTER = 4 , AST_SFC_TRACK_DOUBT_TYPE_UNSTABLE = 5 , AST_SFC_TRACK_DOUBT_TYPE_COAST = 6
}
 Surface Track Doubt Type. More...
enum  ast_sfc_track_merge_type_t { AST_SFC_TRACK_MERGE_TYPE_UNDETERMINED = 0 , AST_SFC_TRACK_MERGE_TYPE_PLOT = 1 , AST_SFC_TRACK_MERGE_TYPE_NO_PLOT = 2 , AST_SFC_TRACK_MERGE_TYPE_SPLIT = 3 }
 Surface Track Merge Type. More...
enum  ast_ops_status_t { AST_OPS_OPERATIONAL = 0 , AST_OPS_DEGRADED = 1 , AST_OPS_NOGO = 2 , AST_OPS_UNDEFINED = 3 }
 Operational Release Status of the System. More...

Functions

const char * ast_dataitem_010_get_name (const ast_dataitem_type_t type)
 Get name function.
void ast_dataitem_010_000_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
 Get summary function.
ast_dataitem_010_020_t ast_dataitem_010_020_decode (const ast_dataitem_t di)
 Decode function.
void ast_dataitem_010_020_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
 Encode function.
void ast_dataitem_010_020_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
 Get detail function.
ast_dataitem_010_040_t ast_dataitem_010_040_decode (const ast_dataitem_t di)
 Decode function.
ast_dataitem_t ast_dataitem_010_040_encode (unsigned char *const buffer, const size_t buf_size, const ast_dataitem_ex_t xdi)
 Encode function.
void ast_dataitem_010_040_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
 Get summary function.
void ast_dataitem_010_040_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
 Get detail function.
ast_dataitem_010_042_t ast_dataitem_010_042_decode (const ast_dataitem_t di)
 Decode function.
void ast_dataitem_010_042_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
 Get summary function.
void ast_dataitem_010_042_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
 Get detail function.
ast_dataitem_010_131_t ast_dataitem_010_131_decode (const ast_dataitem_t di)
 Decode function.
void ast_dataitem_010_131_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
 Get summary function.
void ast_dataitem_010_131_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
 Get detail function.
ast_dataitem_010_170_t ast_dataitem_010_170_decode (const ast_dataitem_t di)
 Decode function.
void ast_dataitem_010_170_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
 Get summary function.
void ast_dataitem_010_170_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
 Get detail function.
ast_dataitem_010_270_t ast_dataitem_010_270_decode (const ast_dataitem_t di)
 Decode function.
void ast_dataitem_010_270_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
 Get summary function.
void ast_dataitem_010_270_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
 Get detail function.
ast_dataitem_010_500_t ast_dataitem_010_500_decode (const ast_dataitem_t di)
 Decode function.
void ast_dataitem_010_500_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
 Get summary function.
void ast_dataitem_010_500_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
 Get detail function.
ast_dataitem_010_550_t ast_dataitem_010_550_decode (const ast_dataitem_t di)
 Decode function.
void ast_dataitem_010_550_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
 Get summary function.
void ast_dataitem_010_550_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
 Get detail function.
ast_sacsic_t ast_datarecord_010_get_sacsic (const ast_datarecord_t dr)
 Get SAC/SIC function.
ast_timeofday_t ast_datarecord_010_get_timeofday (const ast_datarecord_t dr)
 Get time of day function.
ast_msgtype_t ast_datarecord_010_get_msgtype (const ast_datarecord_t dr)
 Get message type function.
ast_tracknum_t ast_datarecord_010_get_tracknum (const ast_datarecord_t dr)
 Get track number function.
ast_squawk_t ast_datarecord_010_get_squawk (const ast_datarecord_t dr)
 Get Mode-3/A code function.
ast_wgs84coord_t ast_datarecord_010_get_coordinate (const ast_datarecord_t dr)
 Get coordinate function.
ast_altitude_t ast_datarecord_010_get_flightlevel (const ast_datarecord_t dr)
 Get flight level function.
ast_polar_coordinate_t ast_datarecord_010_get_polarcoord (const ast_datarecord_t dr)
 Get polar coordinate function.
ast_heading_t ast_datarecord_010_get_heading (const ast_datarecord_t dr)
 Get heading function.
ast_speed_t ast_datarecord_010_get_speed (const ast_datarecord_t dr)
 Get speed function.
ast_cartesian_velocity_t ast_datarecord_010_get_cartesianvel (const ast_datarecord_t dr)
 Get cartesian velocity function.
ast_datarecord_010_t ast_datarecord_010_disassemble (const ast_datarecord_t dr)
 Disassemble CAT010 data record.

Detailed Description

ASTERIX CAT010 - Transmission of Monosensor Surface Movement Data.

Description:
This file declares the data item structures and the decode/encode/disassemble interfaces for ASTERIX Category 010 (Transmission of Monosensor Surface Movement Data) processing.
Note
This implementation is based on ASTERIX CAT010 version 1.1
Reference: EUROCONTROL SUR.ET1.ST05.2000-STD-07-01, Edition 1.1

Function Documentation

◆ ast_dataitem_010_get_name()

const char * ast_dataitem_010_get_name ( const ast_dataitem_type_t type)

Get name function.

Copyright 2008-2026 SinoATC
