Data Record I001 - Monoradar Target Reports. More...

#include <cat001.h>

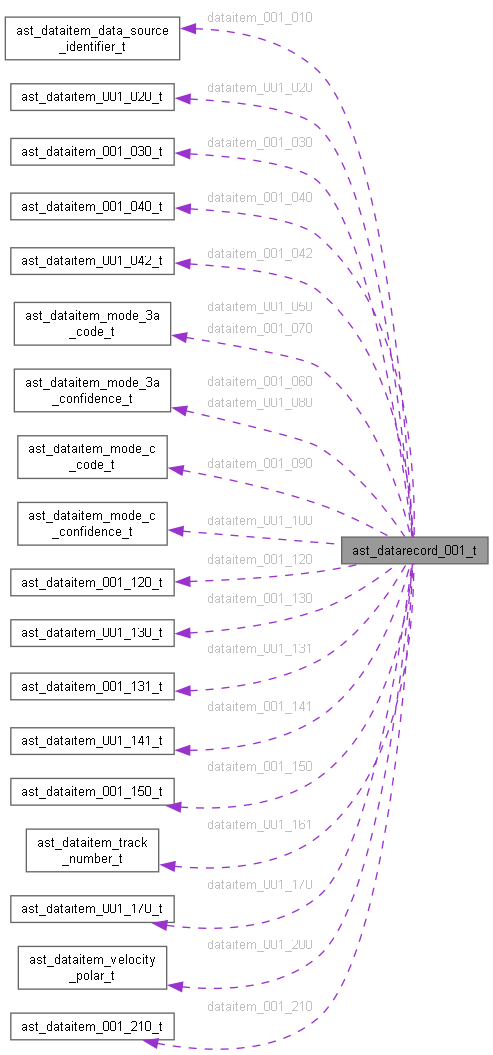

Collaboration diagram for ast_datarecord_001_t:

[legend]

Data Fields
bool	valid
	Validity flag.
ast_dataitem_001_010_t	dataitem_001_010
	I001/010: Data Source Identifier.
ast_dataitem_001_020_t	dataitem_001_020
	I001/020: Target Report Descriptor.
ast_dataitem_001_030_t	dataitem_001_030
	I001/030: Warning/Error Conditions.
ast_dataitem_001_040_t	dataitem_001_040
	I001/040: Measured Position in Polar Coordinates.
ast_dataitem_001_042_t	dataitem_001_042
	I001/042: Calculated Position in Cartesian Coordinates.
ast_dataitem_001_050_t	dataitem_001_050
	I001/050: Mode-2 Code in Octal Representation.
ast_dataitem_001_060_t	dataitem_001_060
	I001/060: Mode-2 Code Confidence Indicator.
ast_dataitem_001_070_t	dataitem_001_070
	I001/070: Mode-3/A Code in Octal Representation.
ast_dataitem_001_080_t	dataitem_001_080
	I001/080: Mode-3/A Code Confidence Indicator.
ast_dataitem_001_090_t	dataitem_001_090
	I001/090: Mode-C Code in Binary Representation.
ast_dataitem_001_100_t	dataitem_001_100
	I001/100: Mode-C Code and Code Confidence Indicator.
ast_dataitem_001_120_t	dataitem_001_120
	I001/120: Measured Radial Doppler Speed.
ast_dataitem_001_130_t	dataitem_001_130
	I001/130: Radar Plot Characteristics.
ast_dataitem_001_131_t	dataitem_001_131
	I001/131: Received Power.
ast_dataitem_001_141_t	dataitem_001_141
	I001/141: Truncated Time of Day.
ast_dataitem_001_150_t	dataitem_001_150
	I001/150: Presence of X-Pulse.
ast_dataitem_001_161_t	dataitem_001_161
	I001/161: Track/Plot Number.
ast_dataitem_001_170_t	dataitem_001_170
	I001/170: Track Status.
ast_dataitem_001_200_t	dataitem_001_200
	I001/200: Calculated Track Velocity in Polar Coordinates.
ast_dataitem_001_210_t	dataitem_001_210
	I001/210: Track Quality.

Detailed Description

Data Record I001 - Monoradar Target Reports.

Field Documentation

◆ dataitem_001_010

ast_dataitem_001_010_t ast_datarecord_001_t::dataitem_001_010

I001/010: Data Source Identifier.

◆ dataitem_001_020

ast_dataitem_001_020_t ast_datarecord_001_t::dataitem_001_020

I001/020: Target Report Descriptor.

◆ dataitem_001_030

ast_dataitem_001_030_t ast_datarecord_001_t::dataitem_001_030

I001/030: Warning/Error Conditions.

◆ dataitem_001_040

ast_dataitem_001_040_t ast_datarecord_001_t::dataitem_001_040

I001/040: Measured Position in Polar Coordinates.

◆ dataitem_001_042

ast_dataitem_001_042_t ast_datarecord_001_t::dataitem_001_042

I001/042: Calculated Position in Cartesian Coordinates.

◆ dataitem_001_050

ast_dataitem_001_050_t ast_datarecord_001_t::dataitem_001_050

I001/050: Mode-2 Code in Octal Representation.

◆ dataitem_001_060

ast_dataitem_001_060_t ast_datarecord_001_t::dataitem_001_060

I001/060: Mode-2 Code Confidence Indicator.

◆ dataitem_001_070

ast_dataitem_001_070_t ast_datarecord_001_t::dataitem_001_070

I001/070: Mode-3/A Code in Octal Representation.

◆ dataitem_001_080

ast_dataitem_001_080_t ast_datarecord_001_t::dataitem_001_080

I001/080: Mode-3/A Code Confidence Indicator.

◆ dataitem_001_090

ast_dataitem_001_090_t ast_datarecord_001_t::dataitem_001_090

I001/090: Mode-C Code in Binary Representation.

◆ dataitem_001_100

ast_dataitem_001_100_t ast_datarecord_001_t::dataitem_001_100

I001/100: Mode-C Code and Code Confidence Indicator.

◆ dataitem_001_120

ast_dataitem_001_120_t ast_datarecord_001_t::dataitem_001_120

I001/120: Measured Radial Doppler Speed.

◆ dataitem_001_130

ast_dataitem_001_130_t ast_datarecord_001_t::dataitem_001_130

I001/130: Radar Plot Characteristics.

◆ dataitem_001_131

ast_dataitem_001_131_t ast_datarecord_001_t::dataitem_001_131

I001/131: Received Power.

◆ dataitem_001_141

ast_dataitem_001_141_t ast_datarecord_001_t::dataitem_001_141

I001/141: Truncated Time of Day.

◆ dataitem_001_150

ast_dataitem_001_150_t ast_datarecord_001_t::dataitem_001_150

I001/150: Presence of X-Pulse.

◆ dataitem_001_161

ast_dataitem_001_161_t ast_datarecord_001_t::dataitem_001_161

I001/161: Track/Plot Number.

◆ dataitem_001_170

ast_dataitem_001_170_t ast_datarecord_001_t::dataitem_001_170

I001/170: Track Status.

◆ dataitem_001_200

ast_dataitem_001_200_t ast_datarecord_001_t::dataitem_001_200

I001/200: Calculated Track Velocity in Polar Coordinates.

◆ dataitem_001_210

ast_dataitem_001_210_t ast_datarecord_001_t::dataitem_001_210

I001/210: Track Quality.

◆ valid

bool ast_datarecord_001_t::valid

Validity flag.
