ASTERIX Category 062 - SDPS Track Messages

Transmission of system track data from SDPS systems. More...

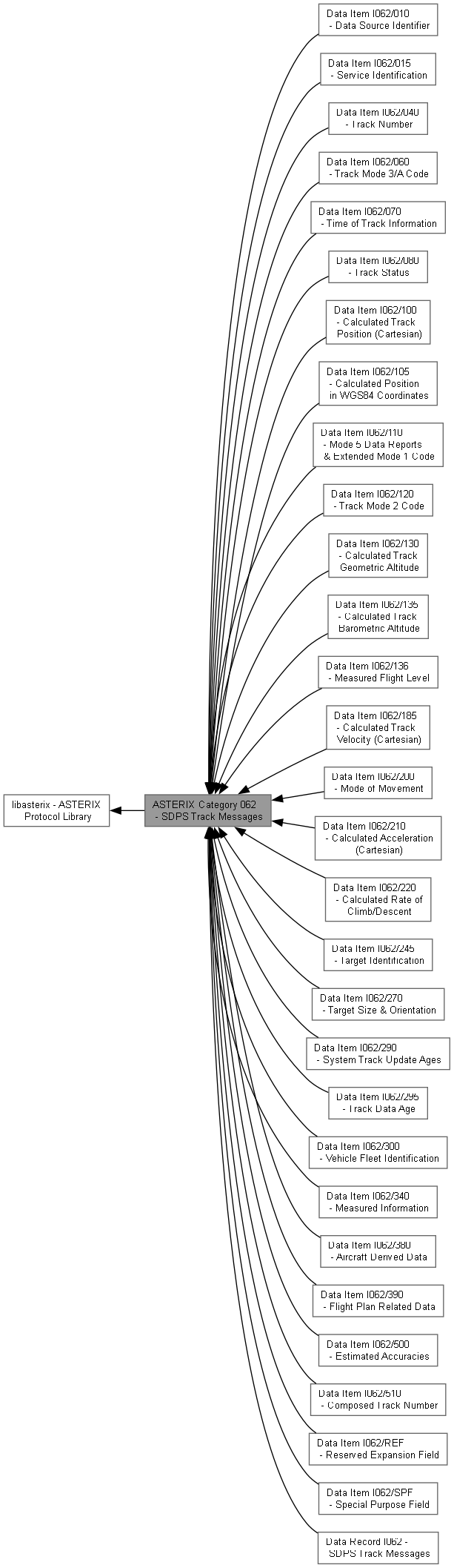

Collaboration diagram for ASTERIX Category 062 - SDPS Track Messages:

Topics
	Data Item I062/010 - Data Source Identifier
	Identification of the system from which the track data is received.
	Data Item I062/015 - Service Identification
	Identification of the service provided to the track.
	Data Item I062/040 - Track Number
	Unique track number assigned by the SDPS.
	Data Item I062/060 - Track Mode 3/A Code
	Mode 3/A code (Squawk code) associated with the track.
	Data Item I062/070 - Time of Track Information
	Absolute time of the track information.
	Data Item I062/080 - Track Status
	Status of the track and various track attributes.
	Data Item I062/100 - Calculated Track Position (Cartesian)
	Calculated track position in Cartesian coordinates.
	Data Item I062/105 - Calculated Position in WGS84 Coordinates
	Calculated track position in WGS-84 coordinates.
	Data Item I062/110 - Mode 5 Data Reports & Extended Mode 1 Code
	Mode 5 data reports and extended Mode 1 code information.
	Data Item I062/120 - Track Mode 2 Code
	Mode 2 code associated with the track.
	Data Item I062/130 - Calculated Track Geometric Altitude
	Calculated geometric altitude of the track.
	Data Item I062/135 - Calculated Track Barometric Altitude
	Calculated barometric altitude of the track.
	Data Item I062/136 - Measured Flight Level
	Measured flight level from Mode C or Mode S.
	Data Item I062/185 - Calculated Track Velocity (Cartesian)
	Calculated track velocity in Cartesian coordinates.
	Data Item I062/200 - Mode of Movement
	Track movement characteristics in three dimensions.
	Data Item I062/210 - Calculated Acceleration (Cartesian)
	Calculated track acceleration in Cartesian coordinates.
	Data Item I062/220 - Calculated Rate of Climb/Descent
	Calculated vertical rate of the track.
	Data Item I062/245 - Target Identification
	Target identification (callsign or aircraft identification).
	Data Item I062/270 - Target Size & Orientation
	Target size (length and width) and orientation.
	Data Item I062/290 - System Track Update Ages
	Ages of the last updates from different surveillance sources.
	Data Item I062/295 - Track Data Age
	Ages of the data items provided in the track message.
	Data Item I062/300 - Vehicle Fleet Identification
	Identification of the type of vehicle on the airport surface.
	Data Item I062/340 - Measured Information
	Measured information from the last sensor providing the track update.
	Data Item I062/380 - Aircraft Derived Data
	Aircraft derived information received via Mode S extended squitter.
	Data Item I062/390 - Flight Plan Related Data
	Flight plan information provided by ground-based systems.
	Data Item I062/500 - Estimated Accuracies
	Estimated accuracies for track parameters.
	Data Item I062/510 - Composed Track Number
	Composed track number for multi-sensor tracks.
	Data Item I062/REF - Reserved Expansion Field
	Reserved expansion field (FRN 34 RE).
	Data Item I062/SPF - Special Purpose Field
	Special purpose field (FRN 35 SP).
	Data Record I062 - SDPS Track Messages
	Data record for SDPS track messages.

Detailed Description

Transmission of system track data from SDPS systems.

Overview:

Category 062 defines the transmission of System Track Data from a Surveillance Data Processing System (SDPS) to user systems. It includes track information such as position, velocity, identification, and various track attributes derived from surveillance sensors:

• Track position (Cartesian and WGS-84 coordinates)
• Track velocity and acceleration
• Mode 3/A code and aircraft identification
• Flight level and geometric altitude
• Track status and system update ages
• Aircraft derived data (ADS-B, Mode S)
• Flight plan related data

Data Items:

• I062/010: Data Source Identifier (SAC/SIC)
• I062/015: Service Identification
• I062/040: Track Number
• I062/060: Track Mode 3/A Code
• I062/070: Time of Track Information
• I062/080: Track Status
• I062/100: Calculated Track Position (Cartesian)
• I062/105: Calculated Position in WGS-84 Coordinates
• I062/110: Mode 5 Data Reports & Extended Mode 1 Code
• I062/120: Track Mode 2 Code
• I062/130: Calculated Track Geometric Altitude
• I062/135: Calculated Track Barometric Altitude
• I062/136: Measured Flight Level
• I062/185: Calculated Track Velocity (Cartesian)
• I062/200: Mode of Movement
• I062/210: Calculated Acceleration (Cartesian)
• I062/220: Calculated Rate of Climb/Descent
• I062/245: Target Identification
• I062/270: Target Size & Orientation
• I062/290: System Track Update Ages
• I062/295: Track Data Ages
• I062/300: Vehicle Fleet Identification
• I062/340: Measured Information
• I062/380: Aircraft Derived Data
• I062/390: Flight Plan Related Data
• I062/500: Estimated Accuracies
• I062/510: Composed Track Number
