ASTERIX Category 034 - Monoradar Service Messages

Transmission of monoradar service messages from radar stations. More...

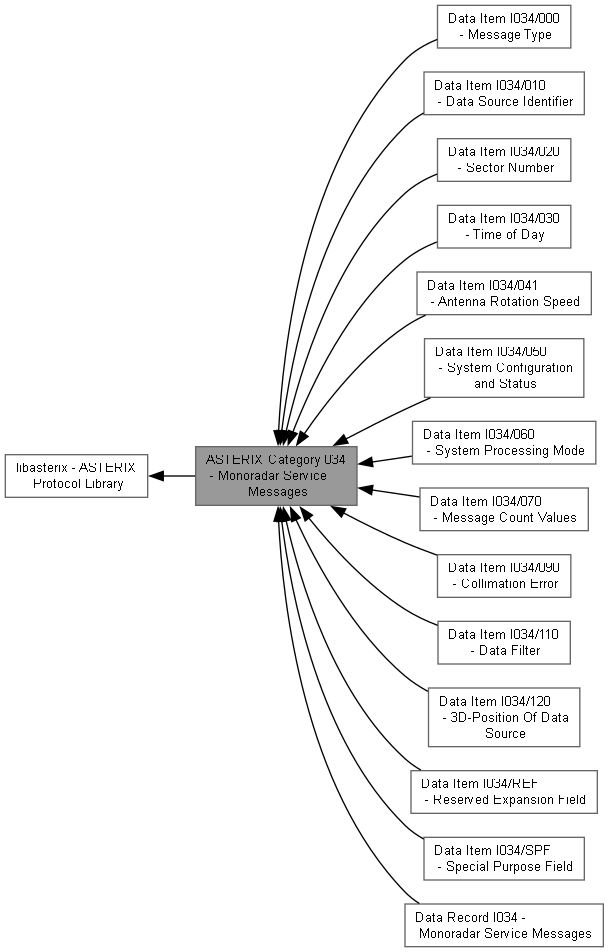

Collaboration diagram for ASTERIX Category 034 - Monoradar Service Messages:

Topics
	Data Item I034/000 - Message Type
	Type of radar service message.
	Data Item I034/010 - Data Source Identifier
	Identification of the radar station from which the data are received.
	Data Item I034/020 - Sector Number
	Eight most significant bits of the antenna azimuth defining a particular azimuth sector.
	Data Item I034/030 - Time of Day
	Absolute time stamping expressed as UTC time.
	Data Item I034/041 - Antenna Rotation Speed
	Antenna rotation period as measured between two consecutive North crossings or as averaged during a period of time.
	Data Item I034/050 - System Configuration and Status
	Information concerning the configuration and status of a System.
	Data Item I034/060 - System Processing Mode
	Status concerning the processing options in use during the last antenna revolution.
	Data Item I034/070 - Message Count Values
	Message count values for various types of messages for the last completed antenna revolution.
	Data Item I034/090 - Collimation Error
	Averaged difference in range and azimuth for primary target position with respect to the SSR target position as calculated by the radar station.
	Data Item I034/110 - Data Filter
	Data Filter which allows suppression of individual data types.
	Data Item I034/120 - 3D-Position Of Data Source
	3D-Position of Data Source in WGS-84 Coordinates
	Data Item I034/SPF - Special Purpose Field
	Special purpose field (FRN 14 SP).
	Data Item I034/REF - Reserved Expansion Field
	Reserved expansion field (FRN 13 RE).
	Data Record I034 - Monoradar Service Messages
	Data record for monoradar service messages.

Detailed Description

Transmission of monoradar service messages from radar stations.

Overview:

This category defines the transmission of monoradar service messages from a radar station (conventional SSR, monopulse, Mode S, conventional PSR, or PSR using MTD processing) to one or more Surveillance Data Processing (SDP) Systems. CAT034 replaces CAT002 in newer implementations.

Message Types (I034/000):

• 1: North Marker Message - signals antenna crossing North azimuth
• 2: Sector Crossing Message - 32 sectors per antenna revolution
• 3: Geographical Filtering Message - filter activation/deactivation
• 4: Jamming Strobe Message - indicates jamming strobe detection area

Data Items:

• I034/000 Message Type
• I034/010 Data Source Identifier
• I034/020 Sector Number
• I034/030 Time of Day
• I034/041 Antenna Rotation Period
• I034/050 System Configuration and Status
• I034/060 System Processing Mode
• I034/070 Message Count Values
• I034/090 Collimation Error
• I034/100 Generic Polar Window
• I034/110 Data Filter
• I034/120 3D-Position of Data Source
• I034/REF Reserved Expansion Field
• I034/SPF Special Purpose Field
