ASTERIX Category 002 - Monoradar Service Messages

Monoradar service message processing. More...

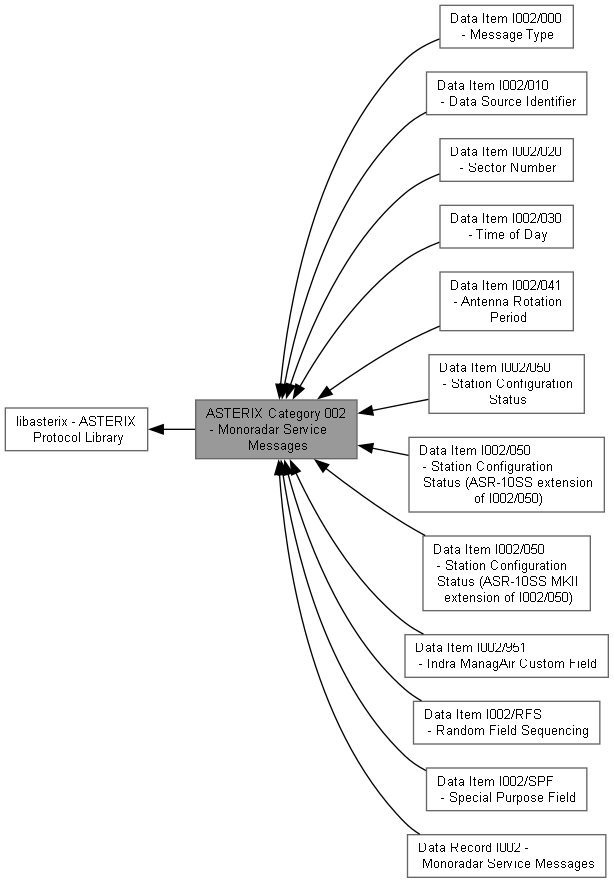

Collaboration diagram for ASTERIX Category 002 - Monoradar Service Messages:

Topics
	Data Item I002/000 - Message Type
	Type of service message being transmitted.
	Data Item I002/010 - Data Source Identifier
	Identification of the radar station from which the data are received.
	Data Item I002/020 - Sector Number
	Sector number identifying the sector about to begin.
	Data Item I002/030 - Time of Day
	Time of an event expressed in UTC.
	Data Item I002/041 - Antenna Rotation Period
	Antenna rotation period or speed.
	Data Item I002/050 - Station Configuration Status
	Status and configuration information of the radar station.
	Data Item I002/050 - Station Configuration Status (ASR-10SS extension of I002/050)
	Raytheon ASR-10SS vendor-specific content of I002/050 Station Configuration Status.
	Data Item I002/050 - Station Configuration Status (ASR-10SS MKII extension of I002/050)
	Raytheon ASR-10SS MKII vendor-specific content of I002/050 Station Configuration Status.
	Data Item I002/SPF - Special Purpose Field
	Special purpose field (FRN 13 SP).
	Data Item I002/RFS - Random Field Sequencing
	Random field sequencing field (FRN 14 RFS Indicator, RS-bit).
	Data Item I002/951 - Indra ManagAir Custom Field
	Indra ManagAir custom field with fixed 2 octets size.
	Data Record I002 - Monoradar Service Messages
	Complete data record for Category 002 messages.

Detailed Description

Monoradar service message processing.

Overview:

Category 002 is used for the transmission of information related to the status and services of a radar station. The messages are used for:

• Synchronization of processing systems to the radar scan (North and Sector Marker Messages)
• Exchange of data related to the status and problems of the sensor

These messages allow the time-stamping of target reports at the radar station site and provide information on radar station status and configuration. CAT002 has been replaced by CAT034 in newer implementations.

Message Types (I002/000):

• 1: North Marker - Indicates antenna crossing North azimuth
• 2: Sector Crossing - Indicates crossing of sector boundary
• 3: South Marker - Indicates antenna crossing South azimuth (optional)
• 8: Blind Zone Filtering Start - Start of blind zone filtering
• 9: Blind Zone Filtering Stop - Stop of blind zone filtering

Data Items:

• I002/000 Message Type
• I002/010 Data Source Identifier
• I002/020 Sector Number
• I002/030 Time of Day
• I002/041 Antenna Rotation Period
• I002/050 Station Configuration Status
• I002/060 Station Processing Mode
• I002/070 Plot Count Values
• I002/080 Warning/Error Conditions
• I002/090 Collimation Error
• I002/100 Dynamic Window - Type 1
• I002/901 Station Configuration Status, Raytheon ASR-10SS extension of I002/050
• I002/902 Station Configuration Status, Raytheon ASR-10SS MKII extension of I002/050
• I002/SPF Special Purpose Field
• I002/RFS Random Field Sequencing
