INCS target report processing. More...

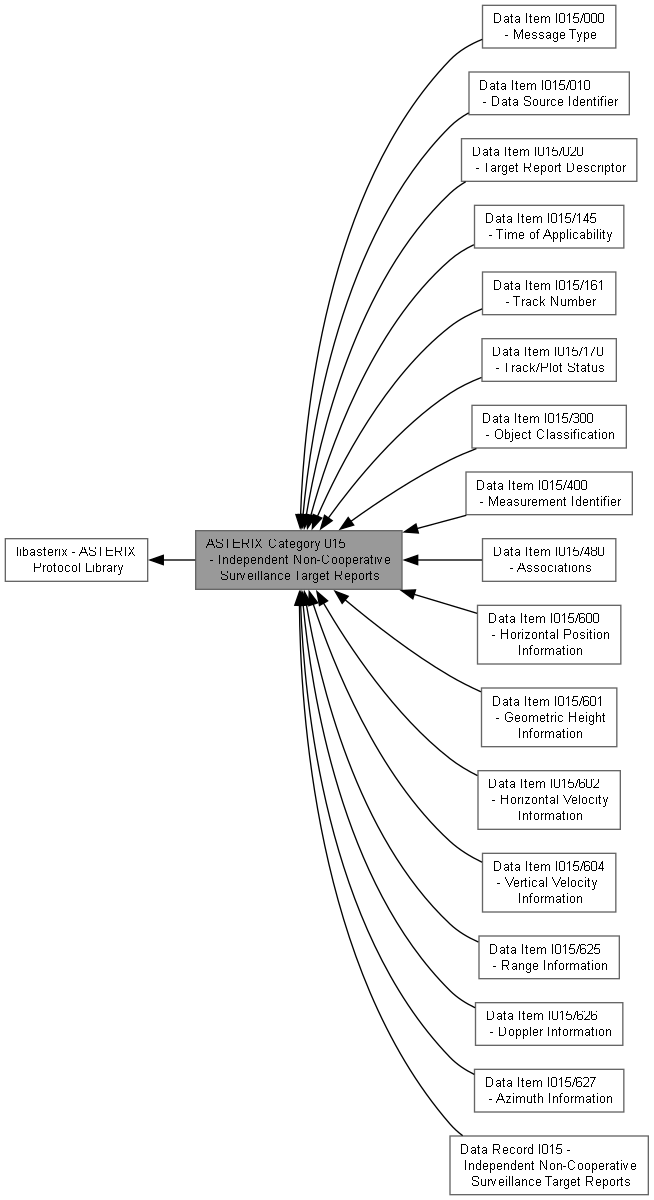

Collaboration diagram for ASTERIX Category 015 - Independent Non-Cooperative Surveillance Target Reports:

Topics
	Data Item I015/000 - Message Type
	Message type.
	Data Item I015/010 - Data Source Identifier
	Data source identifier.
	Data Item I015/020 - Target Report Descriptor
	Target report descriptor.
	Data Item I015/145 - Time of Applicability
	Time of applicability.
	Data Item I015/161 - Track Number
	Track number.
	Data Item I015/170 - Track/Plot Status
	Track/Plot status.
	Data Item I015/300 - Object Classification
	Object classification.
	Data Item I015/400 - Measurement Identifier
	Measurement identifier.
	Data Item I015/480 - Associations
	Associations.
	Data Item I015/600 - Horizontal Position Information
	Horizontal position information.
	Data Item I015/601 - Geometric Height Information
	Geometric height information.
	Data Item I015/602 - Horizontal Velocity Information
	Horizontal velocity information.
	Data Item I015/604 - Vertical Velocity Information
	Vertical velocity information.
	Data Item I015/625 - Range Information
	Range information.
	Data Item I015/626 - Doppler Information
	Doppler information.
	Data Item I015/627 - Azimuth Information
	Azimuth information.
	Data Record I015 - Independent Non-Cooperative Surveillance Target Reports
	Data record for independent non-cooperative surveillance target reports.

Detailed Description

INCS target report processing.

Overview:: Category 015 is a generic category supporting the needs of numerous types of Independent Non-Cooperative Surveillance (INCS) sensors, including mono-static, bi-static, multi-static (active and passive) and electro-optic systems. It defines the message structure for the transmission of INCS target reports, with provision for both 2D and 3D systems.

Message Types (I015/000):

Data Items:
