ASTERIX Category 010 - Transmission of Monosensor Surface Movement Data

Monosensor surface movement data processing. More...

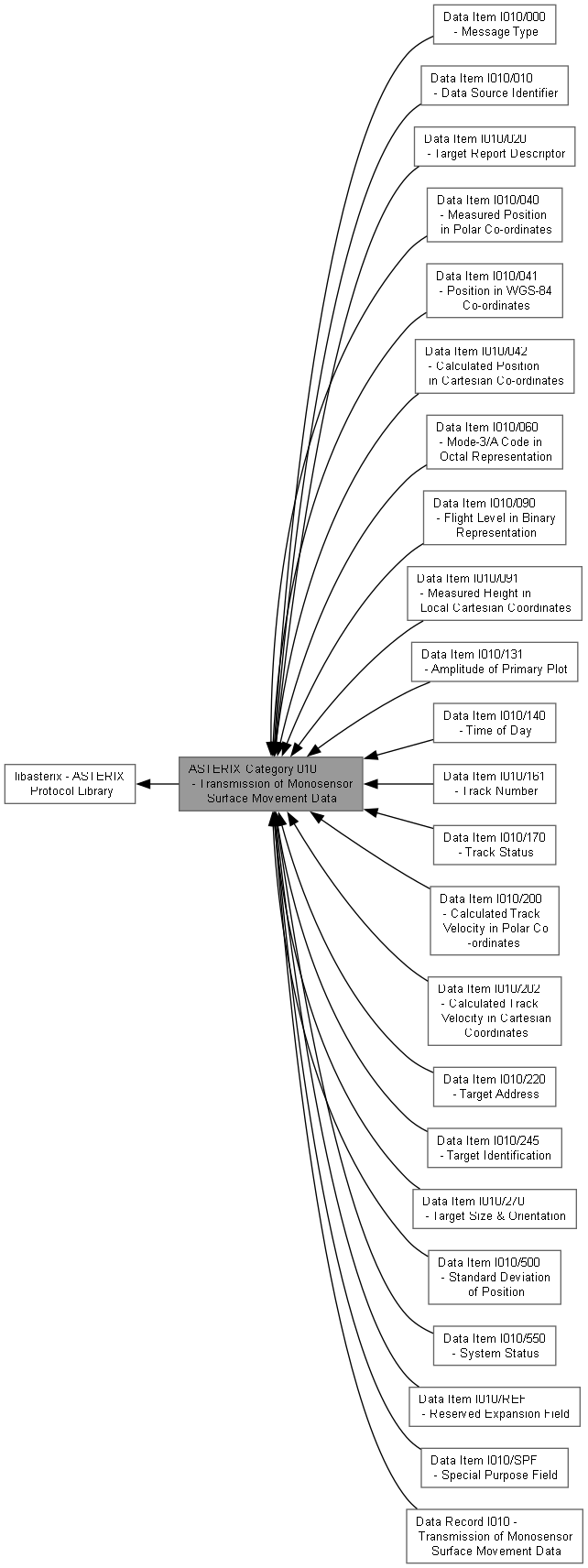

Collaboration diagram for ASTERIX Category 010 - Transmission of Monosensor Surface Movement Data:

Topics
	Data Item I010/000 - Message Type
	Message type.
	Data Item I010/010 - Data Source Identifier
	Data source identifier.
	Data Item I010/020 - Target Report Descriptor
	Target report descriptor.
	Data Item I010/040 - Measured Position in Polar Co-ordinates
	Measured position in polar co-ordinates.
	Data Item I010/041 - Position in WGS-84 Co-ordinates
	Position in WGS-84 co-ordinates.
	Data Item I010/042 - Calculated Position in Cartesian Co-ordinates
	Calculated position in cartesian co-ordinates.
	Data Item I010/060 - Mode-3/A Code in Octal Representation
	Mode-3/A code in octal representation.
	Data Item I010/090 - Flight Level in Binary Representation
	Flight level in binary representation.
	Data Item I010/091 - Measured Height in Local Cartesian Coordinates
	Measured height in local cartesian coordinates.
	Data Item I010/131 - Amplitude of Primary Plot
	Amplitude of primary plot.
	Data Item I010/140 - Time of Day
	Time of day.
	Data Item I010/161 - Track Number
	Track number.
	Data Item I010/170 - Track Status
	Track status.
	Data Item I010/200 - Calculated Track Velocity in Polar Co-ordinates
	Calculated track velocity in polar co-ordinates.
	Data Item I010/202 - Calculated Track Velocity in Cartesian Coordinates
	Calculated track velocity in cartesian coordinates.
	Data Item I010/220 - Target Address
	Target address.
	Data Item I010/245 - Target Identification
	Target identification.
	Data Item I010/270 - Target Size & Orientation
	Target size & orientation.
	Data Item I010/500 - Standard Deviation of Position
	Standard deviation of position.
	Data Item I010/550 - System Status
	System status.
	Data Item I010/SPF - Special Purpose Field
	Special purpose field (FRN 27 SP).
	Data Item I010/REF - Reserved Expansion Field
	Reserved expansion field (FRN 28 RE).
	Data Record I010 - Transmission of Monosensor Surface Movement Data
	Data record for transmission of monosensor surface movement data.

Detailed Description

Monosensor surface movement data processing.

Overview:

Category 010 defines the message structure for the transmission of surface movement target reports and service messages, provided by equipment such as surface movement radars, multilateration systems, ADS-B and magnetic loop systems.

Message Types (I010/000):

• 1: Target Report
• 2: Start of Update Cycle
• 3: Periodic Status Message
• 4: Event-triggered Status Message

Data Items:

• I010/000 Message Type (always present)
• I010/010 Data Source Identifier (always present)
• I010/020 Target Report Descriptor
• I010/040 Measured Position in Polar Co-ordinates
• I010/041 Position in WGS-84 Co-ordinates
• I010/042 Position in Cartesian Co-ordinates
• I010/060 Mode-3/A Code in Octal Representation
• I010/090 Flight Level in Binary Representation
• I010/091 Measured Height
• I010/131 Amplitude of Primary Plot
• I010/140 Time of Day (always present)
• I010/161 Track Number
• I010/170 Track Status
• I010/200 Calculated Track Velocity in Polar Co-ordinates
• I010/202 Calculated Track Velocity in Cartesian Co-ordinates
• I010/210 Calculated Acceleration
• I010/220 Target Address
• I010/245 Target Identification
• I010/250 Mode S MB Data
• I010/270 Target Size & Orientation
• I010/280 Presence
• I010/300 Vehicle Fleet Identification
• I010/310 Pre-programmed Message
• I010/500 Standard Deviation of Position
• I010/550 System Status
• I010/SP Special Purpose Field
• I010/RE Reserved Expansion Field
