Mode-S transponder Binary Data Source (BDS) register processing. More...

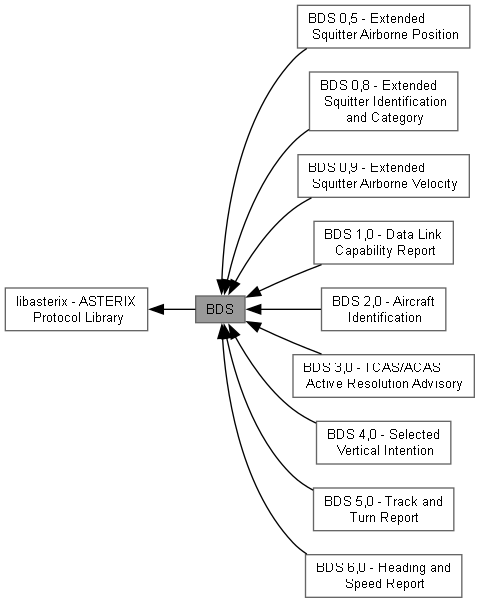

Collaboration diagram for BDS:

Topics
	BDS 0,5 - Extended Squitter Airborne Position
	Extended squitter airborne position.
	BDS 0,8 - Extended Squitter Identification and Category
	Extended squitter identification and category.
	BDS 0,9 - Extended Squitter Airborne Velocity
	Extended squitter airborne velocity.
	BDS 1,0 - Data Link Capability Report
	Data link capability report.
	BDS 2,0 - Aircraft Identification
	Aircraft identification.
	BDS 3,0 - TCAS/ACAS Active Resolution Advisory
	TCAS/ACAS active resolution advisory.
	BDS 4,0 - Selected Vertical Intention
	Selected vertical intention.
	BDS 5,0 - Track and Turn Report
	Track and turn report.
	BDS 6,0 - Heading and Speed Report
	Heading and speed report.

Data Structures
struct	ast_bds_t
	Binary Data Source (BDS). More...

Macros
#define	AST_MAP_BDS_TYPE(msb, lsb)
	Macro used to map BDS type.
#define	AST_MAX_BDS 8
	Max number of BDS in one data item.
#define	AST_BDS_SIZE 7
	BDS bytes.
#define	AST_BDS_DETAIL_HTML_PREFERED_CHARS 20480
	Prefered number of chars of BDS detail description HTML snippet.

Enumerations
enum	ast_bds_type_t { BDS00 = 0x00 , BDS05 = 0x05 , BDS06 = 0x06 , BDS07 = 0x07 , BDS08 = 0x08 , BDS09 = 0x09 , BDS0A = 0x0A , BDS10 = 0x10 , BDS17 = 0x17 , BDS20 = 0x20 , BDS30 = 0x30 , BDS40 = 0x40 , BDS50 = 0x50 , BDS60 = 0x60 , BDS61 = 0x61 , BDS62 = 0x62 , BDS65 = 0x65 , BDSE1 = 0xE1 }
	Definition of BDS type. More...

Functions
const char *	ast_bds_type_to_str (const ast_bds_type_t type)
	Convert from ast_bds_type_t to C string.
const char *	ast_bds_type_to_str_simple (const ast_bds_type_t type)
	Convert from ast_bds_type_t to C string simple version.
ast_bds_t	ast_bds_decode (const unsigned char *buffer, const size_t bufsize, const ast_bds_type_t type)
	Decode BDS from binary data.
const char *	ast_bds_get_name (const ast_bds_type_t type)
	Function to get name of one BDS.
void	ast_bds_get_detail_html (char *detail, const size_t detail_size, const ast_bds_t bds)
	Function to get a html snippet of detailed description of dataitem.
void	ast_bds_get_detail_html_dummy (char *detail, const size_t detail_size, const ast_bds_t bds)
	Dummy get detail function.

Detailed Description

Mode-S transponder Binary Data Source (BDS) register processing.

Macro Definition Documentation

◆ AST_BDS_DETAIL_HTML_PREFERED_CHARS

#define AST_BDS_DETAIL_HTML_PREFERED_CHARS 20480

Prefered number of chars of BDS detail description HTML snippet.

◆ AST_BDS_SIZE

#define AST_BDS_SIZE 7

BDS bytes.

◆ AST_MAP_BDS_TYPE

#define AST_MAP_BDS_TYPE	(		msb,
			lsb )

Value:

BDS ## msb ## lsb = 0x ## msb ## lsb,

Macro used to map BDS type.

A BDS type is an enum value like BDS40, and it's value will be 0x40.

◆ AST_MAX_BDS

#define AST_MAX_BDS 8

Max number of BDS in one data item.

Enumeration Type Documentation

◆ ast_bds_type_t

enum ast_bds_type_t

Definition of BDS type.

Enumerator
BDS00	Null (Invalid) BDS.
BDS05
BDS06
BDS07
BDS08
BDS09
BDS0A
BDS10
BDS17
BDS20
BDS30
BDS40
BDS50
BDS60
BDS61
BDS62
BDS65
BDSE1

Function Documentation

◆ ast_bds_decode()

ast_bds_t ast_bds_decode	(	const unsigned char *	buffer,
		const size_t	bufsize,
		const ast_bds_type_t	type )

Decode BDS from binary data.

◆ ast_bds_get_detail_html()

void ast_bds_get_detail_html	(	char *	detail,
		const size_t	detail_size,
		const ast_bds_t	bds )

Function to get a html snippet of detailed description of dataitem.

Parameters

detail	Buffer to save the html snippet
detail_size	Buffer size
bds	BDS

The returned html fragment contains only basic elements used in html body, such as <br/> <h> <table>....

This function will return only semantics markups, some elements will cantaion class name, and it's recomanded the libary user to use CSS to format the html style.

◆ ast_bds_get_detail_html_dummy()

void ast_bds_get_detail_html_dummy	(	char *	detail,
		const size_t	detail_size,
		const ast_bds_t	bds )

Dummy get detail function.

For some data items, it's not necesary to implement a get_detail_html function. In this case, the dataitem's get_detail_html_func can be register to this dummy function. It' will only set detail as a NULL string and do nothing else.

◆ ast_bds_get_name()

const char * ast_bds_get_name ( const ast_bds_type_t type )

Function to get name of one BDS.

Name is the title of each BDS defined in RTCA documentation

◆ ast_bds_type_to_str()

const char * ast_bds_type_to_str ( const ast_bds_type_t type )

Convert from ast_bds_type_t to C string.

Returns: string like "BDS4,0";

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ast_bds_type_to_str_simple()

const char * ast_bds_type_to_str_simple ( const ast_bds_type_t type )

Convert from ast_bds_type_t to C string simple version.

Returns: string like "4,0";
