cat063.h File Reference

ASTERIX CAT063 - Sensor Status Reports. More...

#include "dataitem.h"
#include "datarecord.h"
#include "cat_generic.h"

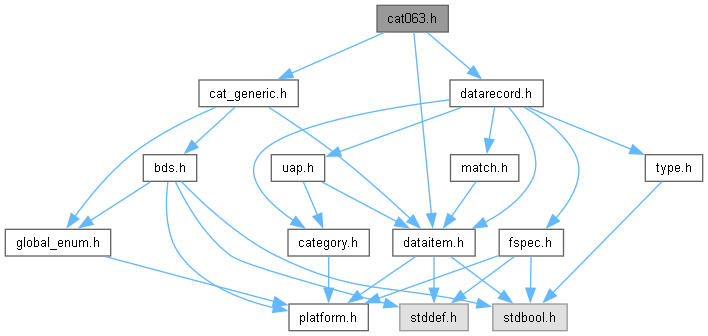

Include dependency graph for cat063.h:

Go to the source code of this file.

Data Structures
struct	ast_dataitem_063_060_t
	Data Item I063/060 - Sensor Configuration and Status. More...
struct	ast_datarecord_063_t
	Data Record I063 - Sensor Status Reports. More...

Macros
#define	ast_dataitem_063_010_get_size   ast_dataitem_data_source_identifier_get_size
	Get the size of Data Item I063/010.
#define	ast_dataitem_063_010_decode   ast_dataitem_data_source_identifier_decode
	Decode Data Item I063/010 from raw bytes.
#define	ast_dataitem_063_010_encode   ast_dataitem_data_source_identifier_encode
	Encode Data Item I063/010 to raw bytes.
#define	ast_dataitem_063_010_get_summary   ast_dataitem_data_source_identifier_get_summary
	Get the summary of Data Item I063/010.
#define	ast_dataitem_063_010_get_detail_html   ast_dataitem_data_source_identifier_get_detail_html
	Get the detailed HTML representation of Data Item I063/010.
#define	ast_dataitem_063_015_get_size   ast_dataitem_service_id_get_size
	Get the size of Data Item I063/015.
#define	ast_dataitem_063_015_decode   ast_dataitem_service_id_decode
	Decode Data Item I063/015 from raw bytes.
#define	ast_dataitem_063_015_encode   ast_dataitem_service_id_encode
	Encode Data Item I063/015 to raw bytes.
#define	ast_dataitem_063_015_get_summary   ast_dataitem_service_id_get_summary
	Get the summary of Data Item I063/015.
#define	ast_dataitem_063_015_get_detail_html   ast_dataitem_service_id_get_detail_html
	Get the detailed HTML representation of Data Item I063/015.
#define	ast_dataitem_063_030_get_size   ast_dataitem_time_of_day_get_size
	Get the size of Data Item I063/030.
#define	ast_dataitem_063_030_decode   ast_dataitem_time_of_day_decode
	Decode Data Item I063/030 from raw bytes.
#define	ast_dataitem_063_030_encode   ast_dataitem_time_of_day_encode
	Encode Data Item I063/030 to raw bytes.
#define	ast_dataitem_063_030_get_summary   ast_dataitem_time_of_day_get_summary
	Get the summary of Data Item I063/030.
#define	ast_dataitem_063_030_get_detail_html   ast_dataitem_time_of_day_get_detail_html
	Get the detailed HTML representation of Data Item I063/030.
#define	ast_dataitem_063_050_get_size   ast_dataitem_data_source_identifier_get_size
	Get the size of Data Item I063/050.
#define	ast_dataitem_063_050_decode   ast_dataitem_data_source_identifier_decode
	Decode Data Item I063/050 from raw bytes.
#define	ast_dataitem_063_050_encode   ast_dataitem_data_source_identifier_encode
	Encode Data Item I063/050 to raw bytes.
#define	ast_dataitem_063_050_get_summary   ast_dataitem_data_source_identifier_get_summary
	Get the summary of Data Item I063/050.
#define	ast_dataitem_063_050_get_detail_html   ast_dataitem_data_source_identifier_get_detail_html
	Get the detailed HTML representation of Data Item I063/050.
#define	ast_dataitem_063_060_get_size   ast_dataitem_get_size_var_2_byte
	Get the size of Data Item I063/060.
#define	ast_dataitem_063_REF_get_size   ast_dataitem_reserved_expansion_field_get_size
	Get size function for I063/REF.
#define	ast_dataitem_063_REF_get_summary   ast_dataitem_reserved_expansion_field_get_summary
	Get summary function for I063/REF.
#define	ast_dataitem_063_REF_get_detail_html   ast_dataitem_reserved_expansion_field_get_detail_html
	Get detail function for I063/REF.
#define	ast_dataitem_063_SPF_get_size   ast_dataitem_special_purpose_field_get_size
	Get size function for I063/SPF.
#define	ast_dataitem_063_SPF_get_summary   ast_dataitem_special_purpose_field_get_summary
	Get summary function for I063/SPF.
#define	ast_dataitem_063_SPF_get_detail_html   ast_dataitem_special_purpose_field_get_detail_html
	Get detail function for I063/SPF.

Typedefs
typedef ast_dataitem_data_source_identifier_t	ast_dataitem_063_010_t
	Data Item I063/010 - Data Source Identifier.
typedef ast_dataitem_service_id_t	ast_dataitem_063_015_t
	Data Item I063/015 - Service Identification.
typedef ast_dataitem_time_of_day_t	ast_dataitem_063_030_t
	Data Item I063/030 - Time of Message.
typedef ast_dataitem_data_source_identifier_t	ast_dataitem_063_050_t
	Data Item I063/050 - Sensor Identifier.

Enumerations
enum	ast_sensor_config_t { AST_SENSOR_CONFIG_OPERATIONAL = 0 , AST_SENSOR_CONFIG_DEGRADED = 1 , AST_SENSOR_CONFIG_INIT = 2 , AST_SENSOR_CONFIG_DISCONNECTED = 3 }
	Sensor configuration status codes. More...

Functions
const char *	ast_dataitem_063_get_name (const ast_dataitem_type_t type)
	Get the name of a CAT063 data item.
ast_dataitem_063_060_t	ast_dataitem_063_060_decode (const ast_dataitem_t di)
	Decode Data Item I063/060 from raw bytes.
void	ast_dataitem_063_060_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
	Get a text summary of Data Item I063/060.
void	ast_dataitem_063_060_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
	Get a detailed HTML representation of Data Item I063/060.
ast_datarecord_063_t	ast_datarecord_063_disassemble (const ast_datarecord_t dr)
	Disassemble a raw data record into CAT063 structured format.

Detailed Description

ASTERIX CAT063 - Sensor Status Reports.

Description:

This file declares the data item structures, the data record structure and the decode/encode/disassemble interfaces for ASTERIX Category 063 (Sensor Status Reports) processing.

Note

This implementation is based on ASTERIX CAT063 version 1.6

Reference: EUROCONTROL-SPEC-0149-10

Function Documentation

ast_dataitem_063_get_name()

const char * ast_dataitem_063_get_name

(

const ast_dataitem_type_t

type

)

Get the name of a CAT063 data item.

Parameters

type	The data item type identifier

Returns

Pointer to a string containing the data item name
