ASTERIX CAT020 - Multilateration Target Reports. More...

#include "datarecord.h"
#include "dataitem.h"
#include "cat_generic.h"

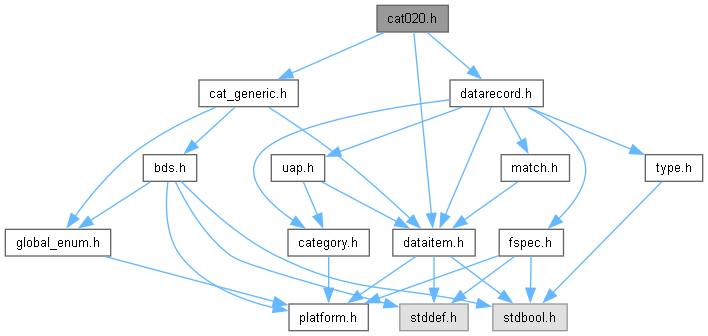

Include dependency graph for cat020.h:

This graph shows which files directly or indirectly include this file:

Data Structures
struct	ast_dataitem_020_020_t
	Data Item I020/020 - Target Report Descriptor. More...
struct	ast_dataitem_020_170_t
	Data Item I020/170 - Track Status. More...
struct	ast_dataitem_020_210_t
	Data Item I020/210 - Calculated Aceleration. More...
struct	ast_dataitem_020_230_t
	Data Item I020/230 - Communications/ACAS Capability and Flight Status. More...
struct	ast_dataitem_020_400_t
	Data Item I020/400 - Contributing Receivers. More...
struct	ast_dataitem_020_500_t
	Data Item I020/500 - Position Accuracy. More...
struct	ast_datarecord_020_t
	Data Record I020 - Multilateration Target Reports. More...

Macros
#define	ast_dataitem_020_010_get_size ast_dataitem_data_source_identifier_get_size
#define	ast_dataitem_020_010_decode ast_dataitem_data_source_identifier_decode
#define	ast_dataitem_020_010_encode ast_dataitem_data_source_identifier_encode
#define	ast_dataitem_020_010_get_summary ast_dataitem_data_source_identifier_get_summary
#define	ast_dataitem_020_010_get_detail_html ast_dataitem_data_source_identifier_get_detail_html
#define	ast_dataitem_020_020_get_size ast_dataitem_get_size_var_2_byte
	Get size function.
#define	ast_dataitem_020_030_get_size ast_dataitem_get_size_var_2_byte
#define	ast_dataitem_020_041_get_size ast_dataitem_position_wgs84_get_size
#define	ast_dataitem_020_041_decode ast_dataitem_position_wgs84_decode
#define	ast_dataitem_020_041_get_summary ast_dataitem_position_wgs84_get_summary
#define	ast_dataitem_020_041_get_detail_html ast_dataitem_position_wgs84_get_detail_html
#define	ast_dataitem_020_042_get_size ast_dataitem_position_cartesian_get_size
#define	ast_dataitem_020_042_decode ast_dataitem_position_cartesian_decode
#define	ast_dataitem_020_042_get_summary ast_dataitem_position_cartesian_get_summary
#define	ast_dataitem_020_042_get_detail_html ast_dataitem_position_cartesian_get_detail_html
#define	ast_dataitem_020_050_get_size ast_dataitem_mode_2_code_get_size
#define	ast_dataitem_020_070_get_size ast_dataitem_mode_3a_code_get_size
#define	ast_dataitem_020_070_decode ast_dataitem_mode_3a_code_decode
#define	ast_dataitem_020_070_encode ast_dataitem_mode_3a_code_encode
#define	ast_dataitem_020_070_get_summary ast_dataitem_mode_3a_code_get_summary
#define	ast_dataitem_020_070_get_detail_html ast_dataitem_mode_3a_code_get_detail_html
#define	ast_dataitem_020_090_get_size ast_dataitem_mode_c_code_get_size
#define	ast_dataitem_020_090_decode ast_dataitem_mode_c_code_decode
#define	ast_dataitem_020_090_encode ast_dataitem_mode_c_code_encode
#define	ast_dataitem_020_090_get_summary ast_dataitem_mode_c_code_get_summary
#define	ast_dataitem_020_090_get_detail_html ast_dataitem_mode_c_code_get_detail_html
#define	ast_dataitem_020_105_get_size ast_dataitem_height_get_size
#define	ast_dataitem_020_105_decode ast_dataitem_height_decode
#define	ast_dataitem_020_105_get_summary ast_dataitem_height_get_summary
#define	ast_dataitem_020_105_get_detail_html ast_dataitem_height_get_detail_html
#define	ast_dataitem_020_110_get_size ast_dataitem_height_get_size
#define	ast_dataitem_020_110_decode ast_dataitem_height_decode
#define	ast_dataitem_020_110_get_summary ast_dataitem_height_get_summary
#define	ast_dataitem_020_110_get_detail_html ast_dataitem_height_get_detail_html
#define	ast_dataitem_020_140_get_size ast_dataitem_time_of_day_get_size
#define	ast_dataitem_020_140_decode ast_dataitem_time_of_day_decode
#define	ast_dataitem_020_140_encode ast_dataitem_time_of_day_encode
#define	ast_dataitem_020_140_get_summary ast_dataitem_time_of_day_get_summary
#define	ast_dataitem_020_140_get_detail_html ast_dataitem_time_of_day_get_detail_html
#define	ast_dataitem_020_161_get_size ast_dataitem_track_number_get_size
#define	ast_dataitem_020_161_decode ast_dataitem_track_number_decode
#define	ast_dataitem_020_161_encode ast_dataitem_track_number_encode
	Encode function.
#define	ast_dataitem_020_161_get_summary ast_dataitem_track_number_get_summary
#define	ast_dataitem_020_161_get_detail_html ast_dataitem_track_number_get_detail_html
#define	ast_dataitem_020_170_get_size ast_dataitem_get_size_var_2_byte
	Get size function.
#define	ast_dataitem_020_202_get_size ast_dataitem_velocity_cartesian_get_size
#define	ast_dataitem_020_202_decode ast_dataitem_velocity_cartesian_decode
#define	ast_dataitem_020_202_get_summary ast_dataitem_velocity_cartesian_get_summary
#define	ast_dataitem_020_202_get_detail_html ast_dataitem_get_detail_html_dummy
#define	ast_dataitem_020_210_get_size ast_dataitem_get_size_fixed_2_byte
	Get size function.
#define	ast_dataitem_020_220_get_size ast_dataitem_target_address_get_size
#define	ast_dataitem_020_220_decode ast_dataitem_target_address_decode
#define	ast_dataitem_020_220_encode ast_dataitem_target_address_encode
#define	ast_dataitem_020_220_get_summary ast_dataitem_target_address_get_summary
#define	ast_dataitem_020_220_get_detail_html ast_dataitem_target_address_get_detail_html
#define	ast_dataitem_020_230_get_size ast_dataitem_get_size_fixed_2_byte
	Get size function.
#define	ast_dataitem_020_245_get_size ast_dataitem_target_id_get_size
#define	ast_dataitem_020_245_decode ast_dataitem_target_id_decode
#define	ast_dataitem_020_245_get_summary ast_dataitem_target_id_get_summary
#define	ast_dataitem_020_245_get_detail_html ast_dataitem_target_id_get_detail_html
#define	ast_dataitem_020_250_get_size ast_dataitem_modes_mb_get_size
#define	ast_dataitem_020_250_decode ast_dataitem_modes_mb_decode
#define	ast_dataitem_020_250_get_summary ast_dataitem_modes_mb_get_summary
#define	ast_dataitem_020_250_get_detail_html ast_dataitem_modes_mb_get_detail_html
#define	ast_dataitem_020_260_get_size ast_dataitem_get_size_fixed_7_byte
	Data Item I020/260 - ACAS Resolution Advisory Report.
#define	ast_dataitem_020_300_get_size ast_dataitem_get_size_fixed_1_byte
	Data Item I020/300 - Vehicle Fleet Identification.
#define	ast_dataitem_020_310_get_size ast_dataitem_get_size_fixed_1_byte
	Data Item I020/310 - Pre-programmed Message.
#define	AST_MAX_MLAT_RECEIVERS 256
#define	ast_dataitem_020_400_get_size ast_dataitem_get_size_rep_1_byte
	Get size funciton.
#define	ast_dataitem_020_REF_get_size ast_dataitem_reserved_expansion_field_get_size
	Get size funciton.
#define	ast_dataitem_020_REF_get_summary ast_dataitem_reserved_expansion_field_get_summary;
	Decode function.
#define	ast_dataitem_020_REF_get_detail_html ast_dataitem_reserved_expansion_field_get_detail_html;
	Get detail function.
#define	ast_dataitem_020_SPF_get_size ast_dataitem_special_purpose_field_get_size
	Get size function.
#define	ast_dataitem_020_SPF_get_summary ast_dataitem_special_purpose_field_get_summary
	Get summary function.
#define	ast_dataitem_020_SPF_get_detail_html ast_dataitem_special_purpose_field_get_detail_html
	Get detail function.
#define	ast_datarecord_020_get_selaltitude 0
	Get selected altitude function.
#define	ast_datarecord_020_get_polarcoord 0
	Get polar coordinate function.
#define	ast_datarecord_020_get_heading 0
	Get heading function.
#define	ast_datarecord_020_get_speed 0
	Get speed function.
#define	ast_datarecord_020_get_cartesianvel 0
	Get cartesian velocity function.
#define	ast_datarecord_020_get_vrate 0
	Get vertical rate function.

Enumerations
enum	ast_mlat_track_vertical_maneuver_t { MLAT_TRACK_CLIMBING , MLAT_TRACK_DESCENDING , MLAT_TRACK_CRUISING , MLAT_TRACK_UNKNOWN }
	MLAT track vertical maneuver status. More...
enum	ast_mlat_comm_capbility_t { MLAT_COMM_NONE = 0 , MLAT_COMM_A_B = 1 , MLAT_COMM_A_B_U = 2 , MLAT_COMM_A_B_U_D = 3 , MLAT_COMM_L5 = 4 , MLAT_COMM_UNDIFINED = 5 }
	MLAT communication capbility. More...
enum	ast_mlat_flight_status_t { MLAT_STAT_AIRBORNE = 0 , MLAT_STAT_GROUND = 1 , MLAT_STAT_AIRBORNE_ALERT = 2 , MLAT_STAT_GROUND_ALERT = 3 , MLAT_STAT_ALERT_SPI = 4 , MLAT_STAT_SPI = 5 , MLAT_STAT_UNDIFINED = 6 , MLAT_STAT_UNKNOWN = 7 }
	MLAT flight status. More...

Functions
const char *	ast_dataitem_020_get_name (const ast_dataitem_type_t type)
	Get name function.
ast_dataitem_020_020_t	ast_dataitem_020_020_decode (const ast_dataitem_t di)
	Decode function.
void	ast_dataitem_020_020_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
	Get Summary function.
void	ast_dataitem_020_020_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
	Get detail function.
size_t	ast_dataitem_020_055_get_size (const unsigned char *buffer, const size_t bufsize)
size_t	ast_dataitem_020_100_get_size (const unsigned char *buffer, const size_t bufsize)
ast_dataitem_020_170_t	ast_dataitem_020_170_decode (const ast_dataitem_t di)
	Decode function.
void	ast_dataitem_020_170_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
	Get summary function.
void	ast_dataitem_020_170_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
	Get detail function.
ast_dataitem_020_210_t	ast_dataitem_020_210_decode (const ast_dataitem_t di)
	Decode function.
void	ast_dataitem_020_210_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
	Get summary function.
void	ast_dataitem_020_210_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
	Get detail function.
ast_dataitem_020_230_t	ast_dataitem_020_230_decode (const ast_dataitem_t di)
	Decode function.
void	ast_dataitem_020_230_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
	Get summary funciton.
void	ast_dataitem_020_230_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
	Get detail function.
ast_dataitem_020_400_t	ast_dataitem_020_400_decode (const ast_dataitem_t di)
	Decode function.
void	ast_dataitem_020_400_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
	Get summary function.
void	ast_dataitem_020_400_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
	Get detail function.
size_t	ast_dataitem_020_500_get_size (const unsigned char *buffer, const size_t bufsize)
	Get size funciton.
ast_dataitem_020_500_t	ast_dataitem_020_500_decode (const ast_dataitem_t di)
	Decode function.
void	ast_dataitem_020_500_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
	Get summary function.
void	ast_dataitem_020_500_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
	Get detail function.
ast_datarecord_020_t	ast_datarecord_020_disassemble (const ast_datarecord_t dr)
	Disassemble function.
ast_sacsic_t	ast_datarecord_020_get_sacsic (const ast_datarecord_t dr)
	Get SAC/SIC function.
ast_timeofday_t	ast_datarecord_020_get_timeofday (const ast_datarecord_t dr)
	Get time of day function.
ast_msgtype_t	ast_datarecord_020_get_msgtype (const ast_datarecord_t dr)
	Get message type function.
ast_tracknum_t	ast_datarecord_020_get_tracknum (const ast_datarecord_t dr)
	Get track number function.
ast_squawk_t	ast_datarecord_020_get_squawk (const ast_datarecord_t dr)
	Get Mode-3/A code function.
ast_callsign_t	ast_datarecord_020_get_callsign (const ast_datarecord_t dr)
	Get callsign function.
ast_icaoaddr_t	ast_datarecord_020_get_icaoaddr (const ast_datarecord_t dr)
	Get ICAO 24-bit address function.
ast_wgs84coord_t	ast_datarecord_020_get_coordinate (const ast_datarecord_t dr)
	Get coordinate function.
ast_altitude_t	ast_datarecord_020_get_flightlevel (const ast_datarecord_t dr)
	Get flight level function.

Detailed Description

ASTERIX CAT020 - Multilateration Target Reports.

Description:: This file declares the data item structures, the data record structure and the decode/encode/disassemble interfaces for ASTERIX Category 020 (Multilateration Target Reports) processing.

Note: This implementation is based on ASTERIX CAT020 version 1.8; Reference: EUROCONTROL SUR.ET1.ST05.2000-STD-14-02, Edition 1.8

Macro Definition Documentation

◆ ast_dataitem_020_260_get_size

#define ast_dataitem_020_260_get_size ast_dataitem_get_size_fixed_7_byte

Data Item I020/260 - ACAS Resolution Advisory Report.

◆ ast_dataitem_020_300_get_size

#define ast_dataitem_020_300_get_size ast_dataitem_get_size_fixed_1_byte

Data Item I020/300 - Vehicle Fleet Identification.

◆ ast_dataitem_020_310_get_size

#define ast_dataitem_020_310_get_size ast_dataitem_get_size_fixed_1_byte

Data Item I020/310 - Pre-programmed Message.

Function Documentation

◆ ast_dataitem_020_get_name()

const char * ast_dataitem_020_get_name ( const ast_dataitem_type_t type )

Get name function.

Typedefs
typedef ast_dataitem_data_source_identifier_t	ast_dataitem_020_010_t
typedef ast_dataitem_position_wgs84_t	ast_dataitem_020_041_t
typedef ast_dataitem_position_cartesian_t	ast_dataitem_020_042_t
typedef ast_dataitem_mode_3a_code_t	ast_dataitem_020_070_t
typedef ast_dataitem_mode_c_code_t	ast_dataitem_020_090_t
typedef ast_dataitem_height_t	ast_dataitem_020_105_t
typedef ast_dataitem_height_t	ast_dataitem_020_110_t
typedef ast_dataitem_time_of_day_t	ast_dataitem_020_140_t
typedef ast_dataitem_track_number_t	ast_dataitem_020_161_t
typedef ast_dataitem_velocity_cartesian_t	ast_dataitem_020_202_t
typedef ast_dataitem_target_address_t	ast_dataitem_020_220_t
typedef ast_dataitem_target_id_t	ast_dataitem_020_245_t
typedef ast_dataitem_modes_mb_t	ast_dataitem_020_250_t

Data Structures

Macros

Typedefs

Enumerations
