cat016.h File Reference

ASTERIX CAT016 - Independent Non-Cooperative Surveillance System Configuration Reports. More...

#include "dataitem.h"
#include "cat_generic.h"

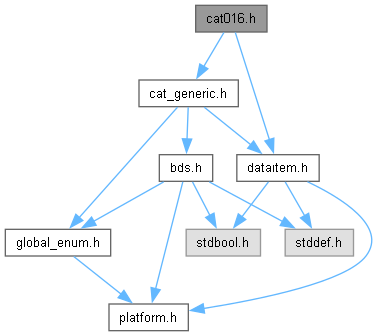

Include dependency graph for cat016.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  ast_dataitem_016_200_t
 Data Item I016/200 - System Configuration Reporting Period. More...
struct  ast_incs_pair_t
 Transmitter/receiver pair of I016/300. More...
struct  ast_dataitem_016_300_t
 Data Item I016/300 - Pair Identification. More...
struct  ast_dataitem_016_405_t
 Data Item I016/405 - Height of System Reference Point. More...
struct  ast_incs_transmitter_t
 Transmitter properties element of I016/410. More...
struct  ast_dataitem_016_410_t
 Data Item I016/410 - Transmitter Properties. More...
struct  ast_incs_receiver_t
 Receiver properties element of I016/420. More...
struct  ast_dataitem_016_420_t
 Data Item I016/420 - Receiver Properties. More...

Macros

#define ast_dataitem_016_000_get_size   ast_dataitem_message_type_get_size
 Get size function.
#define ast_dataitem_016_000_decode   ast_dataitem_message_type_decode
 Decode function.
#define ast_dataitem_016_000_encode   ast_dataitem_message_type_encode
 Encode function.
#define ast_dataitem_016_000_get_detail_html   ast_dataitem_get_detail_html_dummy
 Get detail function.
#define ast_dataitem_016_010_get_size   ast_dataitem_data_source_identifier_get_size
 Get size function.
#define ast_dataitem_016_010_decode   ast_dataitem_data_source_identifier_decode
 Decode function.
#define ast_dataitem_016_010_encode   ast_dataitem_data_source_identifier_encode
 Encode function.
#define ast_dataitem_016_010_get_summary   ast_dataitem_data_source_identifier_get_summary
 Get summary function.
#define ast_dataitem_016_010_get_detail_html   ast_dataitem_data_source_identifier_get_detail_html
 Get detail function.
#define ast_dataitem_016_015_get_size   ast_dataitem_service_id_get_size
 Get size function.
#define ast_dataitem_016_015_decode   ast_dataitem_service_id_decode
 Decode function.
#define ast_dataitem_016_015_encode   ast_dataitem_service_id_encode
 Encode function.
#define ast_dataitem_016_015_get_summary   ast_dataitem_service_id_get_summary
 Get summary function.
#define ast_dataitem_016_015_get_detail_html   ast_dataitem_service_id_get_detail_html
 Get detail function.
#define ast_dataitem_016_140_get_size   ast_dataitem_time_of_day_get_size
 Get size function.
#define ast_dataitem_016_140_decode   ast_dataitem_time_of_day_decode
 Decode function.
#define ast_dataitem_016_140_encode   ast_dataitem_time_of_day_encode
 Encode function.
#define ast_dataitem_016_140_get_summary   ast_dataitem_time_of_day_get_summary
 Get summary function.
#define ast_dataitem_016_140_get_detail_html   ast_dataitem_time_of_day_get_detail_html
 Get detail function.
#define ast_dataitem_016_200_get_size   ast_dataitem_get_size_fixed_1_byte
 Get size function.
#define ast_dataitem_016_200_get_detail_html   ast_dataitem_get_detail_html_dummy
 Get detail function.
#define AST_MAX_INCS_PAIR   32
#define ast_dataitem_016_300_get_size   ast_dataitem_get_size_rep_6_byte
 Get size function.
#define ast_dataitem_016_400_get_size   ast_dataitem_position_wgs84_get_size
 Get size function.
#define ast_dataitem_016_400_decode   ast_dataitem_position_wgs84_decode
 Decode function.
#define ast_dataitem_016_400_encode   ast_dataitem_position_wgs84_encode
 Encode function.
#define ast_dataitem_016_400_get_summary   ast_dataitem_position_wgs84_get_summary
 Get summary function.
#define ast_dataitem_016_400_get_detail_html   ast_dataitem_position_wgs84_get_detail_html
 Get detail function.
#define ast_dataitem_016_405_get_size   ast_dataitem_get_size_fixed_2_byte
 Get size function.
#define AST_MAX_INCS_TRANSMITTER   32
#define ast_dataitem_016_410_get_size   ast_dataitem_get_size_rep_21_byte
 Get size function.
#define AST_MAX_INCS_RECEIVER   32
#define ast_dataitem_016_420_get_size   ast_dataitem_get_size_rep_12_byte
 Get size function.

Typedefs

typedef ast_dataitem_message_type_t ast_dataitem_016_000_t
 Data Item I016/000 - Message Type.
typedef ast_dataitem_data_source_identifier_t ast_dataitem_016_010_t
 Data Item I016/010 - Data Source Identifier.
typedef ast_dataitem_service_id_t ast_dataitem_016_015_t
 Data Item I016/015 - Service Identification.
typedef ast_dataitem_time_of_day_t ast_dataitem_016_140_t
 Data Item I016/140 - Time of Applicability.
typedef ast_dataitem_position_wgs84_t ast_dataitem_016_400_t
 Item I016/400 - Position of the System Reference Point.

Enumerations

enum  ast_incs_config_message_type_t { AST_INCS_CONFIG_MESSAGE_SYSTEM = 1 , AST_INCS_CONFIG_MESSAGE_TXRX = 2 }
 INCS configuration message type. More...

Functions

const char * ast_dataitem_016_get_name (const ast_dataitem_type_t type)
 Get name function.
void ast_dataitem_016_000_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
 Get summary function.
ast_dataitem_016_200_t ast_dataitem_016_200_decode (const ast_dataitem_t di)
 Decode function.
void ast_dataitem_016_200_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
 Encode function.
ast_dataitem_016_300_t ast_dataitem_016_300_decode (const ast_dataitem_t di)
 Decode function.
void ast_dataitem_016_300_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
 Encode function.
void ast_dataitem_016_300_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
 Get detail function.
ast_dataitem_016_405_t ast_dataitem_016_405_decode (const ast_dataitem_t di)
 Decode function.
void ast_dataitem_016_405_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
 Get Summary function.
void ast_dataitem_016_405_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
 Get detail function.
ast_dataitem_016_410_t ast_dataitem_016_410_decode (const ast_dataitem_t di)
 Decode function.
void ast_dataitem_016_410_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
 Encode function.
void ast_dataitem_016_410_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
 Get detail function.
ast_dataitem_016_420_t ast_dataitem_016_420_decode (const ast_dataitem_t di)
 Decode function.
void ast_dataitem_016_420_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
 Encode function.
void ast_dataitem_016_420_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
 Get detail function.

Detailed Description

ASTERIX CAT016 - Independent Non-Cooperative Surveillance System Configuration Reports.

Description:
This file declares the data item structures and the decode/encode interfaces for ASTERIX Category 016 (Independent Non-Cooperative Surveillance System Configuration Reports) processing.
Note
This implementation is based on ASTERIX CAT016 version 1.0
Reference: EUROCONTROL-SPEC-0149-30, Edition 1.0

Function Documentation

◆ ast_dataitem_016_get_name()

const char * ast_dataitem_016_get_name ( const ast_dataitem_type_t type)

Get name function.
